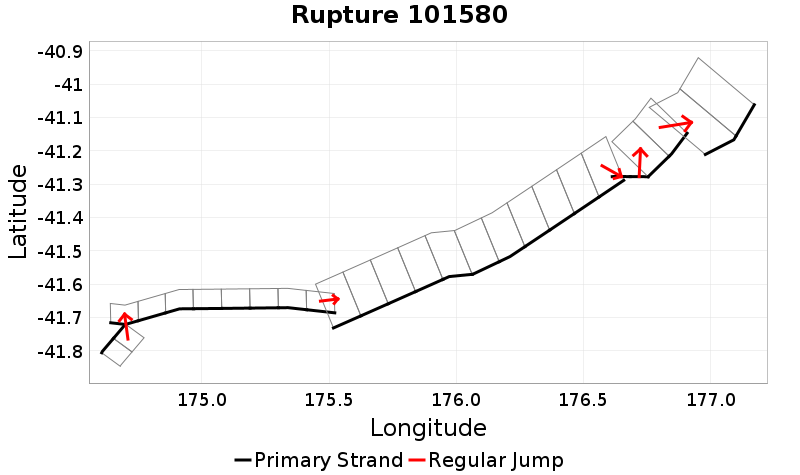

Rupture 101580
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 249.4 | 7.6 | 27 | 6 | 5,072.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 0.9190853 | 1.7 | 1.1 | 20.2 | -57.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 330 | 4 | 507.6 | 5.3939093E-6 |
Text representation:
[67:319,318][61:296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][613:2363,2364][618:2383,2382][474:1869,1868]
Fault section list. First section listed is South West relative to the last section.
- Campbell Bank
- 319, 318 (jump to 296, 0.2km)
- BooBoo
- 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2363, 0.3km)
- Uruti Basin
- 2363, 2364 (jump to 2383, 0km)
- Uruti Ridge 2
- 2383, 2382 (jump to 1869, 0.9km)
- Porangahau Basin
- 1869, 1868
