Rupture 14384
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 200 | 7.6 | 20 | 4 | 4,534.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 2.6 | 3 | 1.1 | 24.2 | -56.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 130 | 0.0 | 563.3 | 0.1362963 |
Text representation:
[18:79,80,81,82,83,84][332:1328,1327][193:779,780,781,782,783][297:1202,1201,1200,1199,1198,1197,1196]

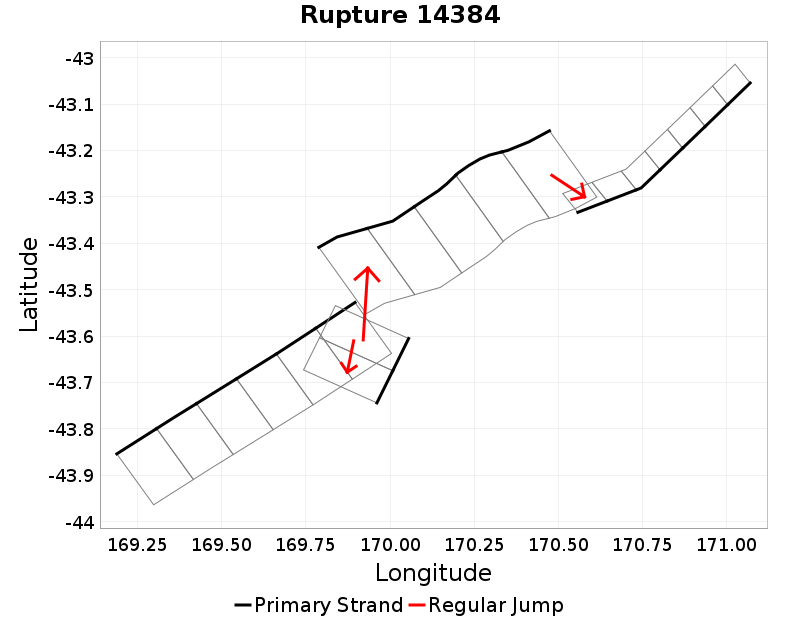

Fault section list. First section listed is South West relative to the last section.
- Alpine: Jacksons to Kaniere
- 79, 80, 81, 82, 83, 84 (jump to 1328, 0.1km)
- McKerrow - Douglas Duplex
- 1328, 1327 (jump to 779, 2.6km)
- Hohonu South
- 779, 780, 781, 782, 783 (jump to 1202, 0.3km)
- Lord Range
- 1202, 1201, 1200, 1199, 1198, 1197, 1196
