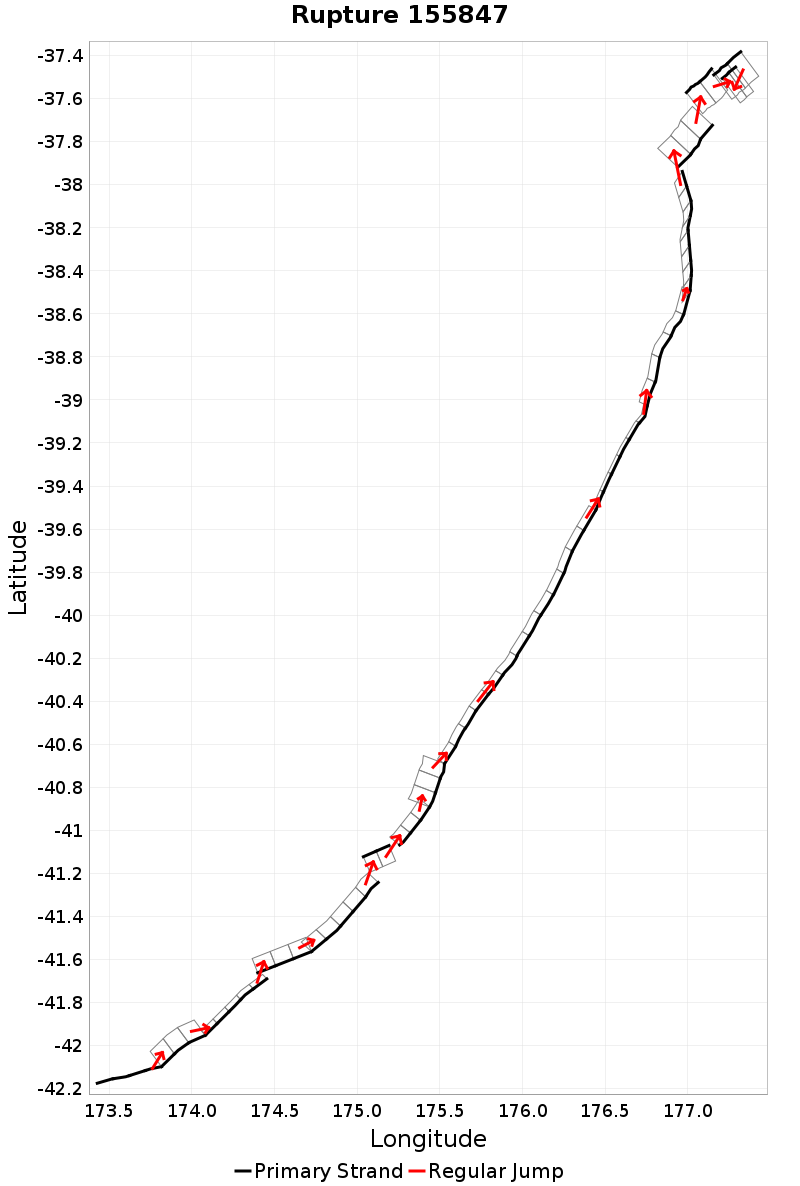

Rupture 155847
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 660.7 | 8.1 | 69 | 17 | 14,774.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.6 | 20.1 | 1.1 | 32.5 | 3.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 350 | 8 | 1,103.2 | 5.160721E-14 |
Text representation:
[143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][653:2517,2516,2515][650:2501,2502,2503,2504,2505][677:2597,2596][680:2606,2605,2604][681:2609,2608,2607][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][688:2642,2643,2644,2645,2646][687:2641,2640,2639,2638,2637,2636,2635,2634][700:2699,2700,2701][686:2633,2632][572:2235,2234][602:2316,2315]
Fault section list. First section listed is South West relative to the last section.
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 2517, 4.6km)
- Wairarapa: Needles
- 2517, 2516, 2515 (jump to 2501, 0km)
- Wairarapa: 1
- 2501, 2502, 2503, 2504, 2505 (jump to 2597, 0.9km)
- Wellington Hutt Valley: 5
- 2597, 2596 (jump to 2606, 4.6km)
- Wellington: Tararua 2
- 2606, 2605, 2604 (jump to 2609, 0km)
- Wellington: Tararua 3
- 2609, 2608, 2607 (jump to 2601, 0km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2642, 0km)
- Whakatane: South
- 2642, 2643, 2644, 2645, 2646 (jump to 2641, 0km)
- Whakatane: North
- 2641, 2640, 2639, 2638, 2637, 2636, 2635, 2634 (jump to 2699, 3.3km)
- White Island 1
- 2699, 2700, 2701 (jump to 2633, 1.5km)
- Whakaari 4
- 2633, 2632 (jump to 2235, 2.3km)
- Te Arawa 1
- 2235, 2234 (jump to 2316, 3.1km)
- Tuatoru 1
- 2316, 2315
