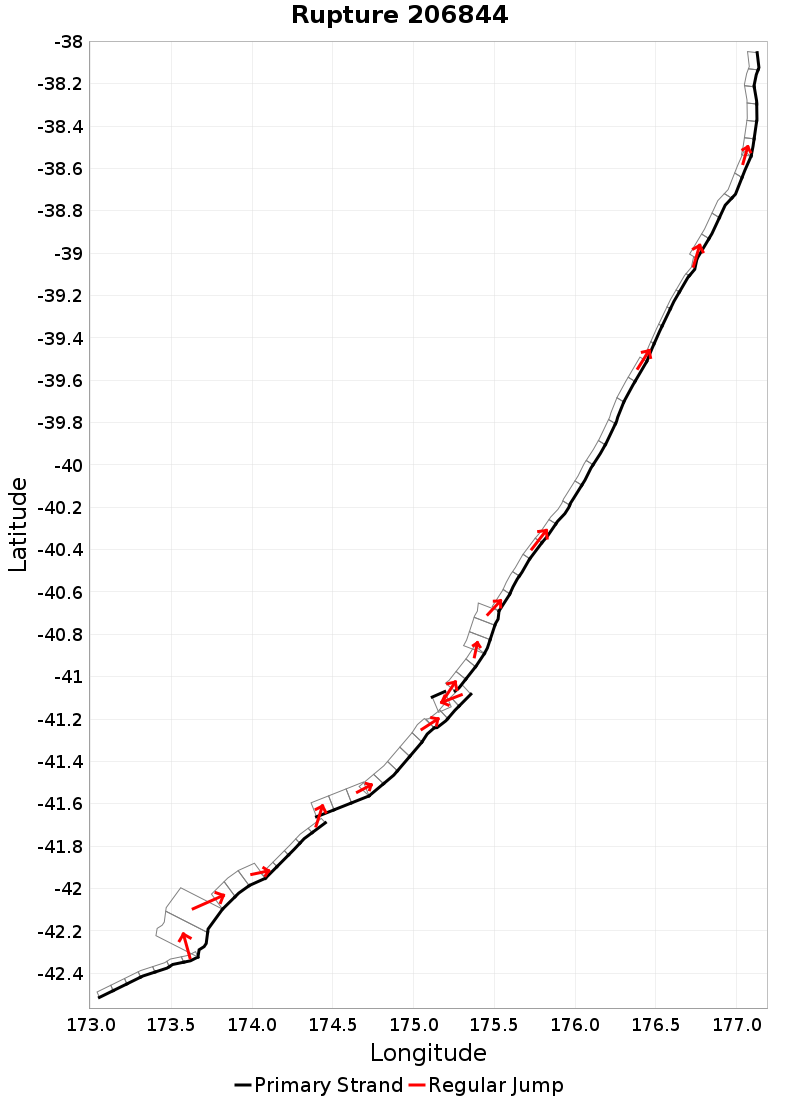

Rupture 206844
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 645.2 | 8.1 | 65 | 15 | 14,479.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.6 | 9.5 | 1.1 | 40.8 | -11.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 330 | 7 | 972.3 | 1.5200853E-11 |
Text representation:
[198:813,812,811,810,809,808,807][227:919,920][249:994,993,992][367:1464,1463,1462,1461,1460][653:2517,2516,2515][650:2501,2502,2503,2504,2505][651:2506,2507,2508][677:2596][680:2606,2605,2604][681:2609,2608,2607][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][636:2442,2443,2444,2445,2446][635:2441,2440,2439,2438,2437,2436]
Fault section list. First section listed is South West relative to the last section.
- Hope: Conway
- 813, 812, 811, 810, 809, 808, 807 (jump to 919, 0km)
- Jordan
- 919, 920 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 2517, 4.6km)
- Wairarapa: Needles
- 2517, 2516, 2515 (jump to 2501, 0km)
- Wairarapa: 1
- 2501, 2502, 2503, 2504, 2505 (jump to 2506, 0km)
- Wairarapa: 2
- 2506, 2507, 2508 (jump to 2596, 0.4km)
- Wellington Hutt Valley: 5
- 2596 (jump to 2606, 4.6km)
- Wellington: Tararua 2
- 2606, 2605, 2604 (jump to 2609, 0km)
- Wellington: Tararua 3
- 2609, 2608, 2607 (jump to 2601, 0km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2442, 0km)
- Waimana: South
- 2442, 2443, 2444, 2445, 2446 (jump to 2441, 0km)
- Waimana: North
- 2441, 2440, 2439, 2438, 2437, 2436
