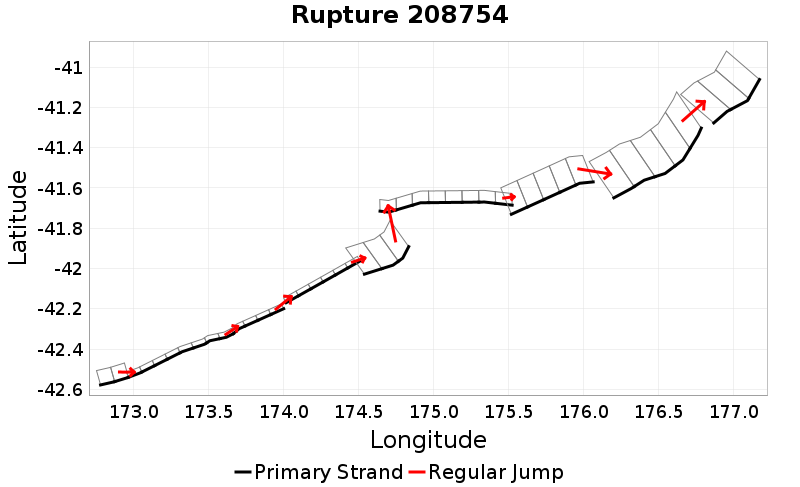

Rupture 208754
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 409.7 | 7.9 | 44 | 9 | 8,714.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9.5 | 19.2 | 1 | 8.6 | -42.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 240 | 3 | 527.9 | 5.7870733E-7 |
Text representation:
[199:815,816][198:814,813,812,811,810,809,808,807][205:830,831,832,833][207:843,842,841,840,839,838][612:2353,2354,2355][61:296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678][487:1931,1930,1929,1928,1927][474:1870,1869,1868]
Fault section list. First section listed is South West relative to the last section.
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808, 807 (jump to 830, 0km)
- Hope: Seaward
- 830, 831, 832, 833 (jump to 843, 3.5km)
- Hope: Te Rapa
- 843, 842, 841, 840, 839, 838 (jump to 2353, 0.4km)
- Upper Slope
- 2353, 2354, 2355 (jump to 296, 9.5km)
- BooBoo
- 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678 (jump to 1931, 4.1km)
- Pukeroro 2
- 1931, 1930, 1929, 1928, 1927 (jump to 1870, 1.6km)
- Porangahau Basin
- 1870, 1869, 1868
