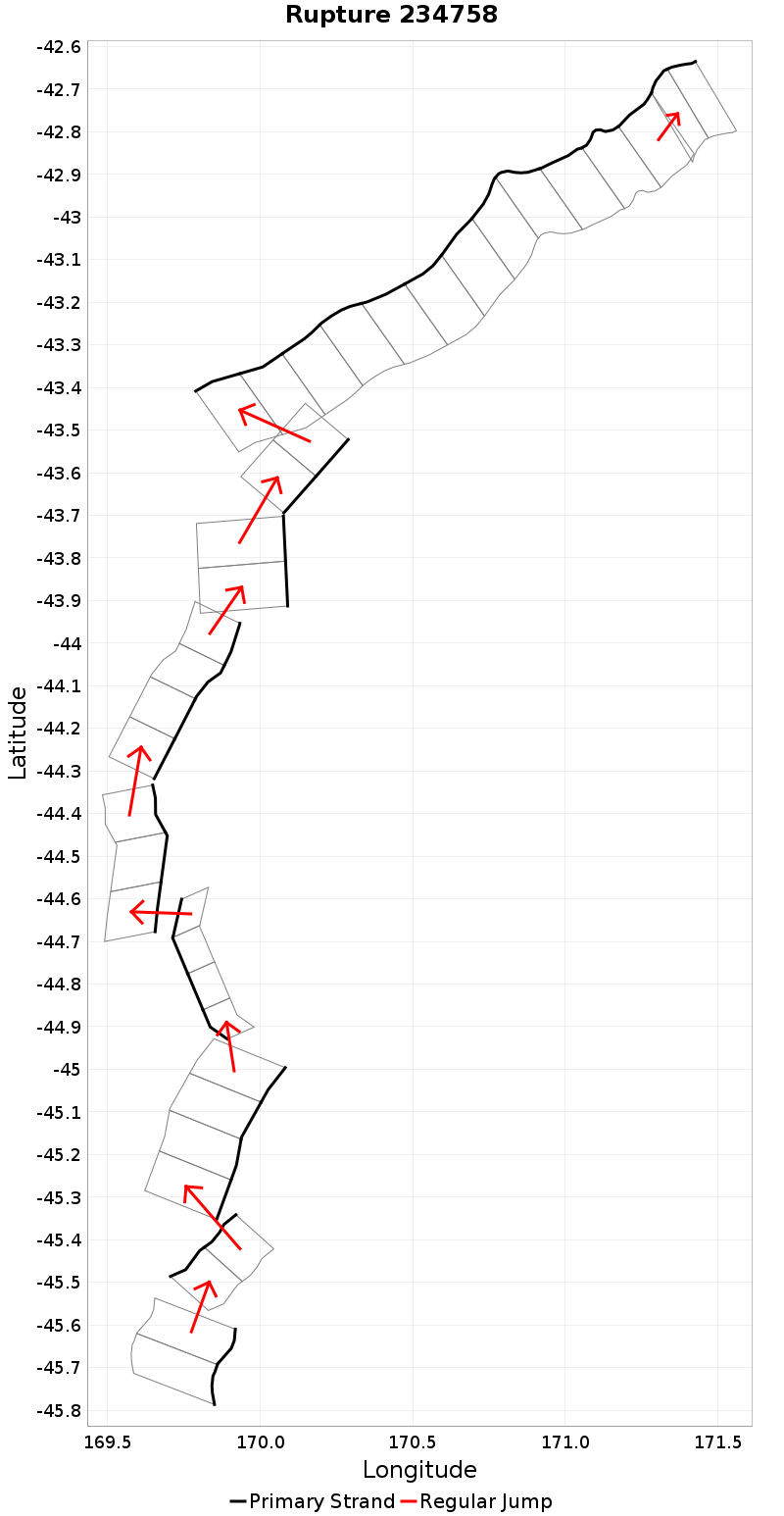

Rupture 234758
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 431.6 | 8 | 37 | 10 | 11,414.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.8 | 19.9 | 1.2 | 59.3 | -73.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 80 | 2 | 1,012.5 | 1.5772686E-6 |
Text representation:
[220:902,903][494:1954,1955][161:679,678,677,676][58:284,283,282,281][114:513,512,511][48:253,252,251,250][168:699,700][56:278,277][193:779,780,781,782,783,784,785,786,787,788,789,790][191:776,775]
Fault section list. First section listed is South West relative to the last section.
- Hyde South - The Twins
- 902, 903 (jump to 1954, 4km)
- Pylap
- 1954, 1955 (jump to 679, 2.3km)
- Gimmerburn
- 679, 678, 677, 676 (jump to 284, 4.6km)
- Blue Lake
- 284, 283, 282, 281 (jump to 513, 4.8km)
- Dromedary
- 513, 512, 511 (jump to 253, 1.7km)
- Barrier Range
- 253, 252, 251, 250 (jump to 699, 1.3km)
- Great Groove
- 699, 700 (jump to 278, 0.9km)
- Black Blob - Haast Ridge
- 278, 277 (jump to 779, 0.3km)
- Hohonu South
- 779, 780, 781, 782, 783, 784, 785, 786, 787, 788, 789, 790 (jump to 776, 0km)
- Hohonu
- 776, 775
