Rupture 237530
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 292.6 | 7.7 | 31 | 7 | 5,886.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 0.30231476 | 0.7487816 | 1.3 | 65.9 | -32.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 350 | 2 | 666.5 | 2.8093279E-4 |
Text representation:
[231:937,936][400:1585,1584,1583][459:1808][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][446:1746,1747,1748,1749,1750,1751,1752]

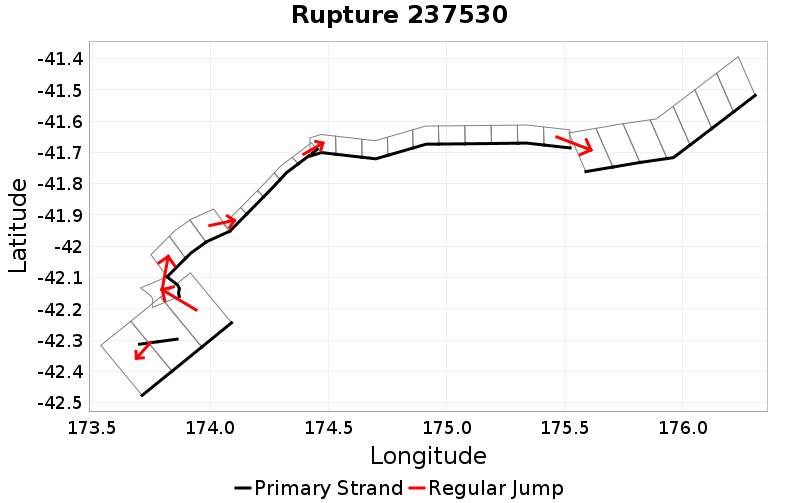

Fault section list. First section listed is South West relative to the last section.
- Kaikoura - Mangamaunu
- 937, 936 (jump to 1585, 0.1km)
- Offshore Splay Thrust
- 1585, 1584, 1583 (jump to 1808, 0.2km)
- Papatea
- 1808 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1746, 0.3km)
- Pahaua
- 1746, 1747, 1748, 1749, 1750, 1751, 1752
