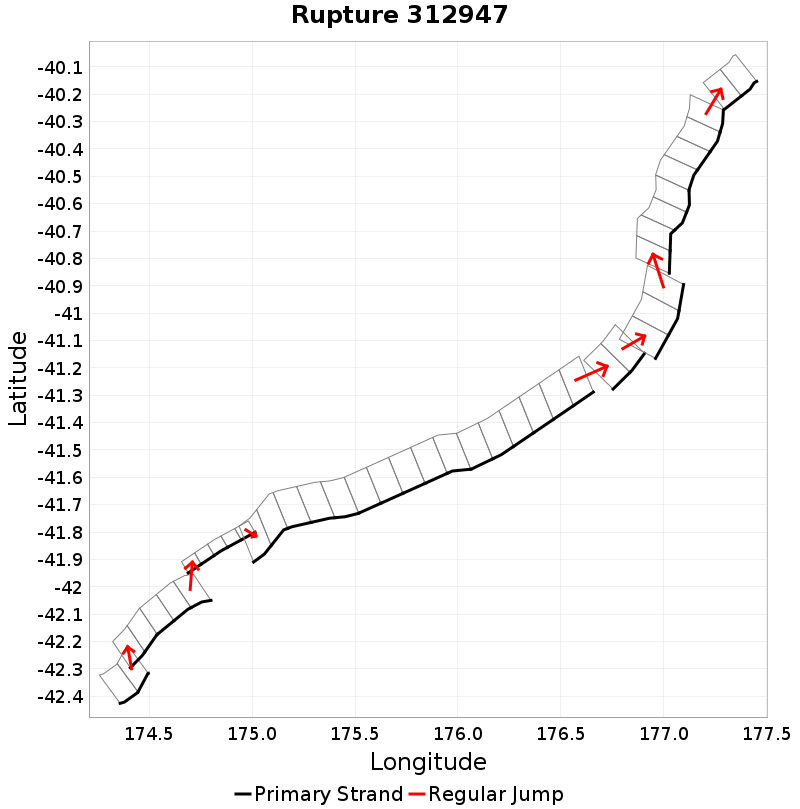

Rupture 312947
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 391.5 | 7.8 | 43 | 8 | 7,724.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5 | 20.5 | 1.1 | 30 | -81.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 130 | 4 | 751.8 | 2.9162516E-8 |
Text representation:
[318:1277,1276][250:1003,1002,1001,1000,999][581:2256,2257,2258,2259,2260][426:1669,1670,1671,1672,1673,1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][618:2383,2382][615:2370,2371,2372][303:1224,1225,1226,1227,1228,1229,1230,1231][349:1407,1406]
Fault section list. First section listed is South West relative to the last section.
- Marlborough Slope 4
- 1277, 1276 (jump to 1003, 4.8km)
- Kekerengu Bank
- 1003, 1002, 1001, 1000, 999 (jump to 2256, 5km)
- Te Rapa 2
- 2256, 2257, 2258, 2259, 2260 (jump to 1669, 0.2km)
- Opouawe - Uruti
- 1669, 1670, 1671, 1672, 1673, 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2383, 2.4km)
- Uruti Ridge 2
- 2383, 2382 (jump to 2370, 2.9km)
- Uruti East - PorWest 1
- 2370, 2371, 2372 (jump to 1224, 4.7km)
- Madden Banks
- 1224, 1225, 1226, 1227, 1228, 1229, 1230, 1231 (jump to 1407, 0.5km)
- Motu o Kura East
- 1407, 1406
