Rupture 324014
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 290.1 | 7.8 | 26 | 6 | 7,079.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.3 | 9.6 | 1 | 2.4 | -9.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 40 | 2 | 188.4 | 6.935448E-5 |
Text representation:
[337:1347,1346,1345][338:1359,1358,1357,1356][534:2085,2084,2083,2082,2081][678:2598,2599][396:1567,1568,1569,1570,1571][404:1592,1593,1594,1595,1596,1597,1598]

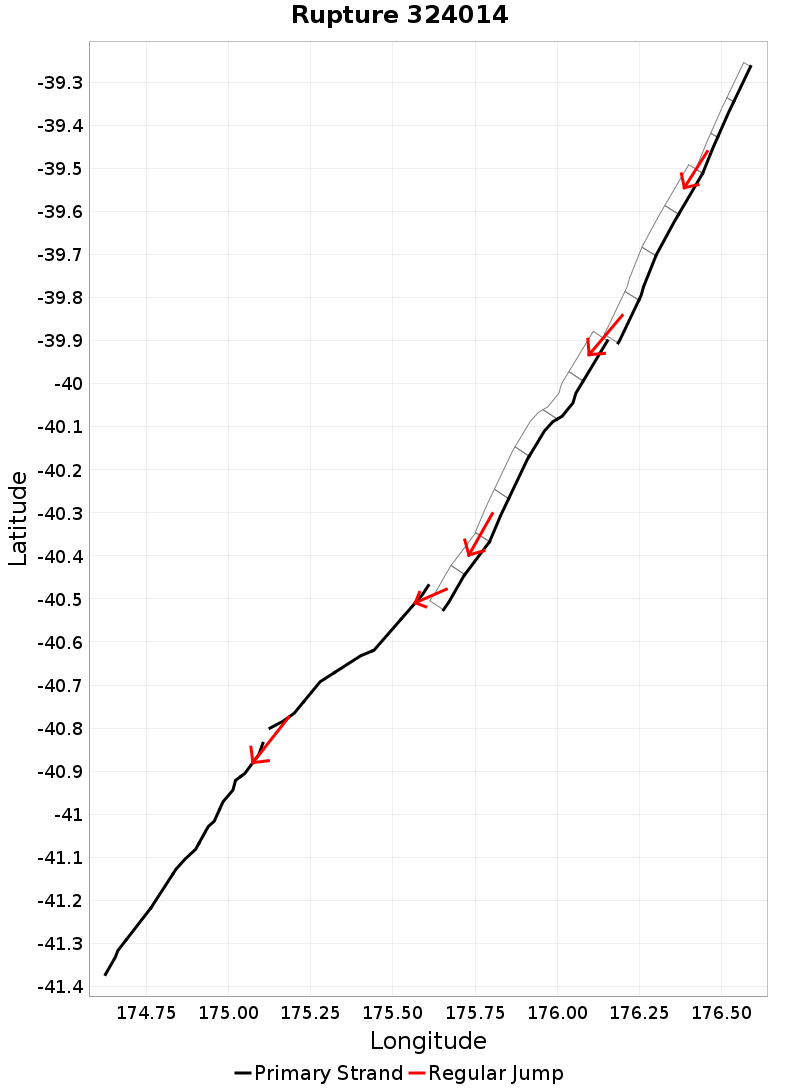

Fault section list. First section listed is North East relative to the last section.
- Mohaka: North
- 1347, 1346, 1345 (jump to 1359, 0km)
- Mohaka: South
- 1359, 1358, 1357, 1356 (jump to 2085, 2.8km)
- Ruahine: South
- 2085, 2084, 2083, 2082, 2081 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599 (jump to 1567, 2.5km)
- Northern Ohariu
- 1567, 1568, 1569, 1570, 1571 (jump to 1592, 4.3km)
- Ohariu
- 1592, 1593, 1594, 1595, 1596, 1597, 1598
