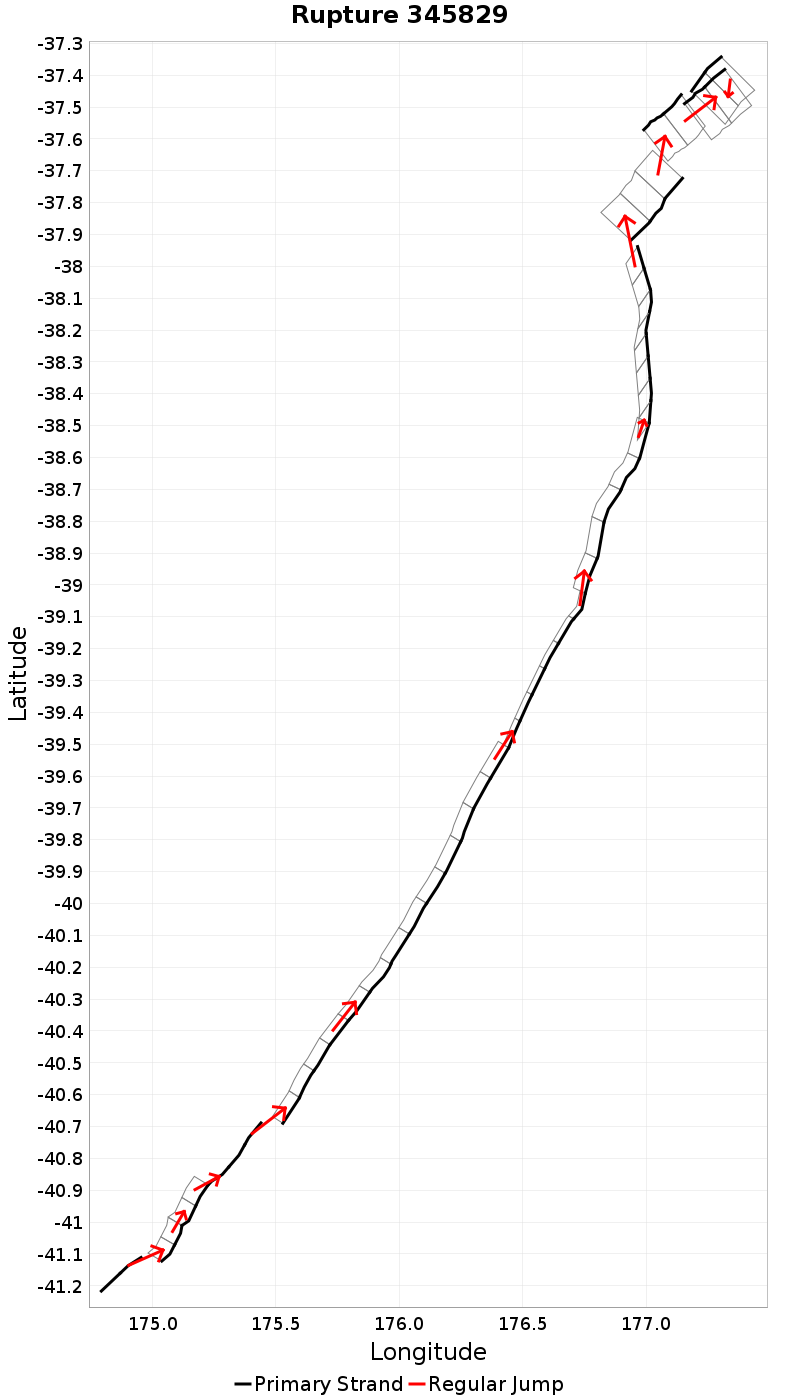

Rupture 345829
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 500.7 | 8 | 50 | 13 | 11,607.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 17.3 | 1 | 18.7 | 12.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 170 | 6 | 691.8 | 2.0411055E-11 |
Text representation:
[344:1389,1388][3:7,8][433:1707,1708][434:1711,1710,1709][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][688:2642,2643,2644,2645,2646][687:2641,2640,2639,2638,2637,2636,2635,2634][700:2699,2700,2701][686:2633,2632][573:2236,2237][572:2234,2235]
Fault section list. First section listed is South West relative to the last section.
- Moonshine
- 1389, 1388 (jump to 7, 2.8km)
- Akatarawa
- 7, 8 (jump to 1707, 0km)
- Otaki Forks: 1
- 1707, 1708 (jump to 1711, 0km)
- Otaki Forks: 2
- 1711, 1710, 1709 (jump to 2601, 4.7km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2642, 0km)
- Whakatane: South
- 2642, 2643, 2644, 2645, 2646 (jump to 2641, 0km)
- Whakatane: North
- 2641, 2640, 2639, 2638, 2637, 2636, 2635, 2634 (jump to 2699, 3.3km)
- White Island 1
- 2699, 2700, 2701 (jump to 2633, 1.5km)
- Whakaari 4
- 2633, 2632 (jump to 2236, 3.9km)
- Te Arawa 2
- 2236, 2237 (jump to 2234, 1.2km)
- Te Arawa 1
- 2234, 2235
