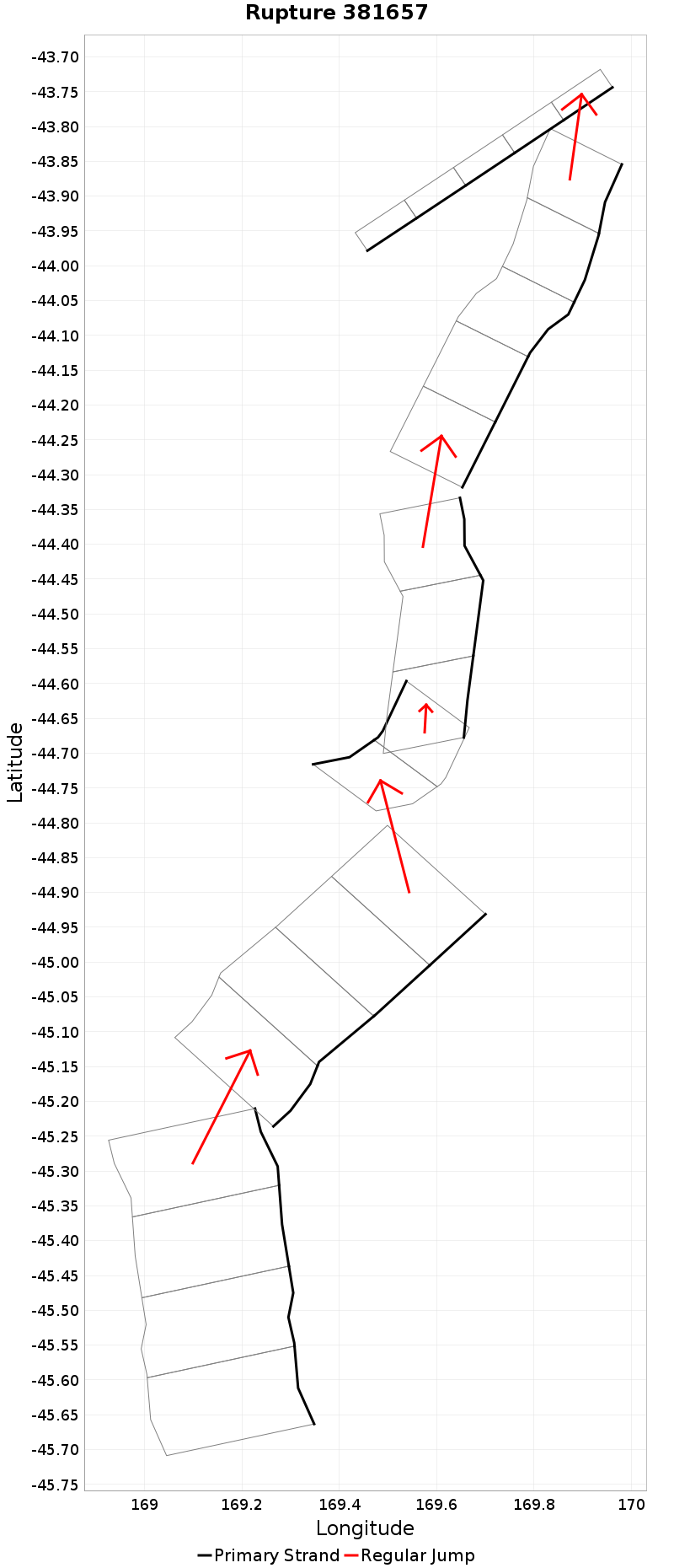

Rupture 381657
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 268.5 | 7.8 | 23 | 6 | 7,346.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.3 | 10.9 | 1.2 | 49.6 | -88.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 80 | 2 | 449.3 | 1.535697E-5 |
Text representation:
[415:1627,1628,1629,1630][121:532,533,534,535][290:1173,1174][114:513,512,511][48:253,252,251,250,249][279:1136,1137,1138,1139,1140]
Fault section list. First section listed is South West relative to the last section.
- Old Man
- 1627, 1628, 1629, 1630 (jump to 532, 1.9km)
- Dunstan
- 532, 533, 534, 535 (jump to 1173, 2.7km)
- Lindis River
- 1173, 1174 (jump to 513, 0.2km)
- Dromedary
- 513, 512, 511 (jump to 253, 1.7km)
- Barrier Range
- 253, 252, 251, 250, 249 (jump to 1136, 4.3km)
- Landsborough 2
- 1136, 1137, 1138, 1139, 1140
