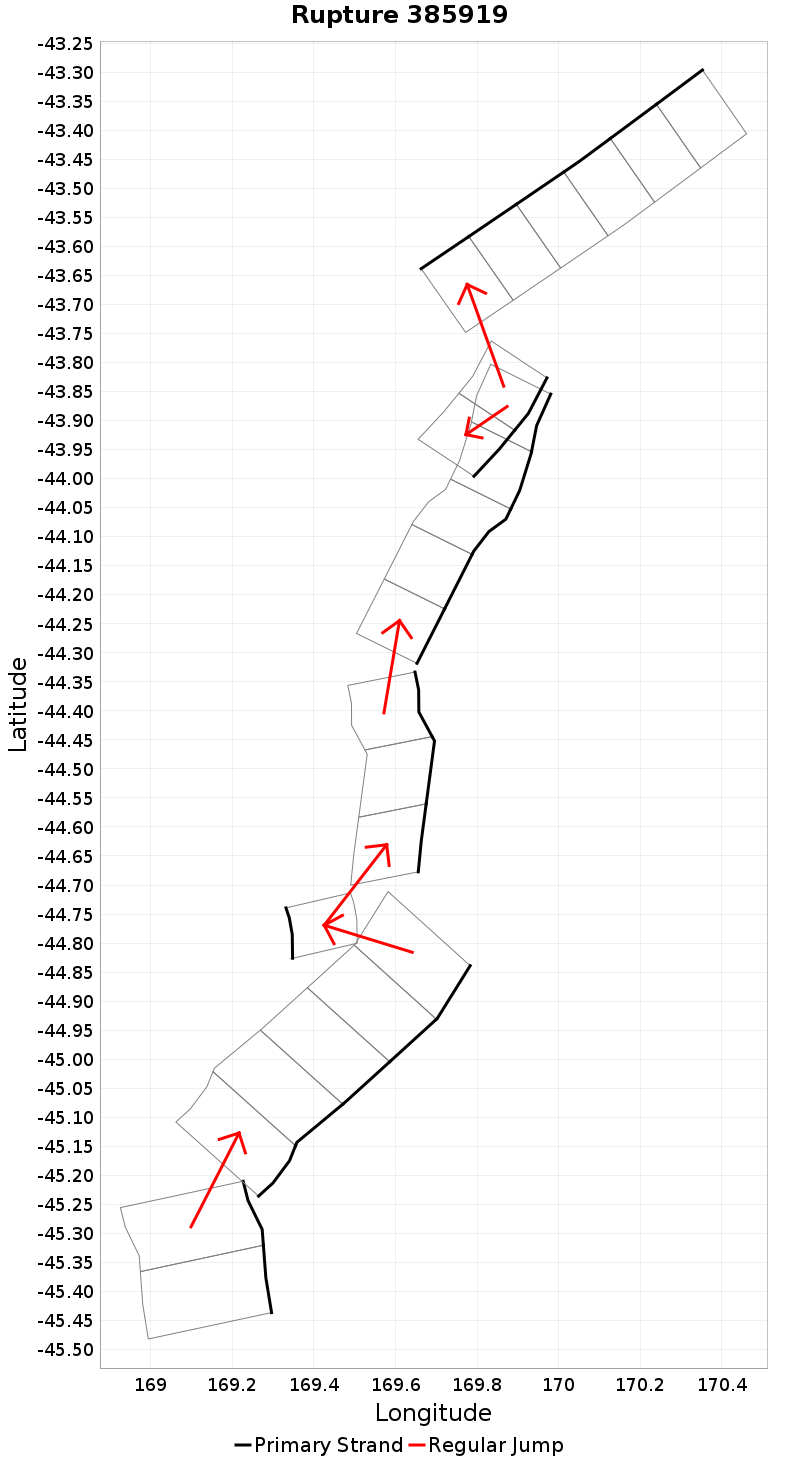

Rupture 385919
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 285.8 | 7.8 | 24 | 7 | 7,752.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.9 | 13.3 | 1.1 | 33.4 | -71.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 130 | 2 | 844.4 | 5.2201362E-6 |
Text representation:
[415:1629,1630][121:532,533,534,535,536][167:696][114:513,512,511][48:253,252,251,250,249][208:846,847][18:83,84,85,86,87,88]
Fault section list. First section listed is South West relative to the last section.
- Old Man
- 1629, 1630 (jump to 532, 1.9km)
- Dunstan
- 532, 533, 534, 535, 536 (jump to 696, 0.3km)
- Grandview
- 696 (jump to 513, 1.7km)
- Dromedary
- 513, 512, 511 (jump to 253, 1.7km)
- Barrier Range
- 253, 252, 251, 250, 249 (jump to 846, 1.8km)
- Hopkins
- 846, 847 (jump to 83, 5.9km)
- Alpine: Jacksons to Kaniere
- 83, 84, 85, 86, 87, 88
