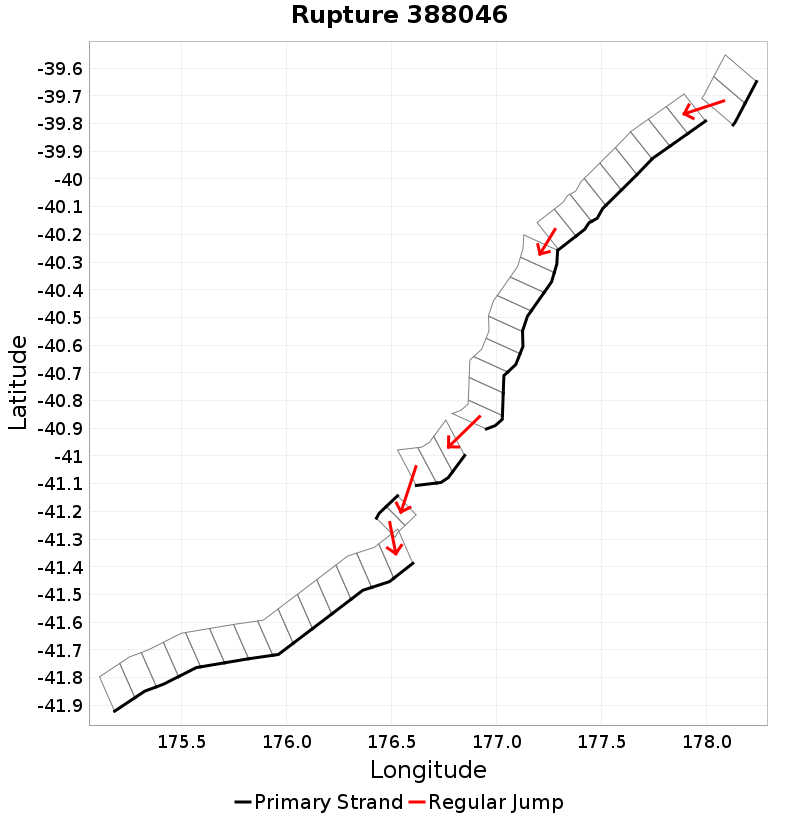

Rupture 388046
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 352.9 | 7.8 | 39 | 6 | 6,846.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.5 | 20.1 | 0.97816074 | -7.9 | -88.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 90 | 2 | 622.8 | 4.7882324E-5 |
Text representation:
[416:1631,1632][349:1399,1400,1401,1402,1403,1404,1405,1406,1407][303:1231,1230,1229,1228,1227,1226,1225,1224,1223][616:2376,2377,2378][614:2365,2366][446:1755,1754,1753,1752,1751,1750,1749,1748,1747,1746,1745,1744,1743,1742]
Fault section list. First section listed is North East relative to the last section.
- Omakere Ridge
- 1631, 1632 (jump to 1399, 7.2km)
- Motu o Kura East
- 1399, 1400, 1401, 1402, 1403, 1404, 1405, 1406, 1407 (jump to 1231, 0.5km)
- Madden Banks
- 1231, 1230, 1229, 1228, 1227, 1226, 1225, 1224, 1223 (jump to 2376, 3.8km)
- Uruti North
- 2376, 2377, 2378 (jump to 2365, 8.5km)
- Uruti Basin 2
- 2365, 2366 (jump to 1755, 0.2km)
- Pahaua
- 1755, 1754, 1753, 1752, 1751, 1750, 1749, 1748, 1747, 1746, 1745, 1744, 1743, 1742
