Rupture 396410
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 173.3 | 7.4 | 21 | 6 | 3,188.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10 | 17.2 | 0.9957304 | -0.7430414 | -71.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 180 | 3 | 379.6 | 3.830586E-6 |
Text representation:
[426:1675,1676][196:800,801,802][613:2356,2357,2358,2359,2360,2361,2362,2363,2364][618:2383,2382][615:2370,2371,2372][473:1855,1856]

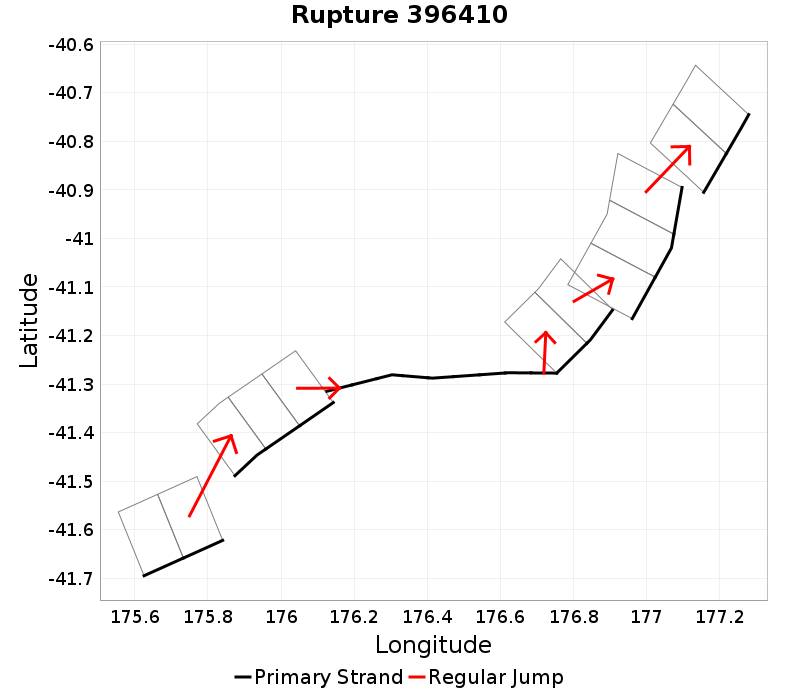

Fault section list. First section listed is South West relative to the last section.
- Opouawe - Uruti
- 1675, 1676 (jump to 800, 10km)
- Honeycomb
- 800, 801, 802 (jump to 2356, 0.6km)
- Uruti Basin
- 2356, 2357, 2358, 2359, 2360, 2361, 2362, 2363, 2364 (jump to 2383, 0km)
- Uruti Ridge 2
- 2383, 2382 (jump to 2370, 2.9km)
- Uruti East - PorWest 1
- 2370, 2371, 2372 (jump to 1855, 3.8km)
- PorWest2 - PaoanuiRSouth
- 1855, 1856
