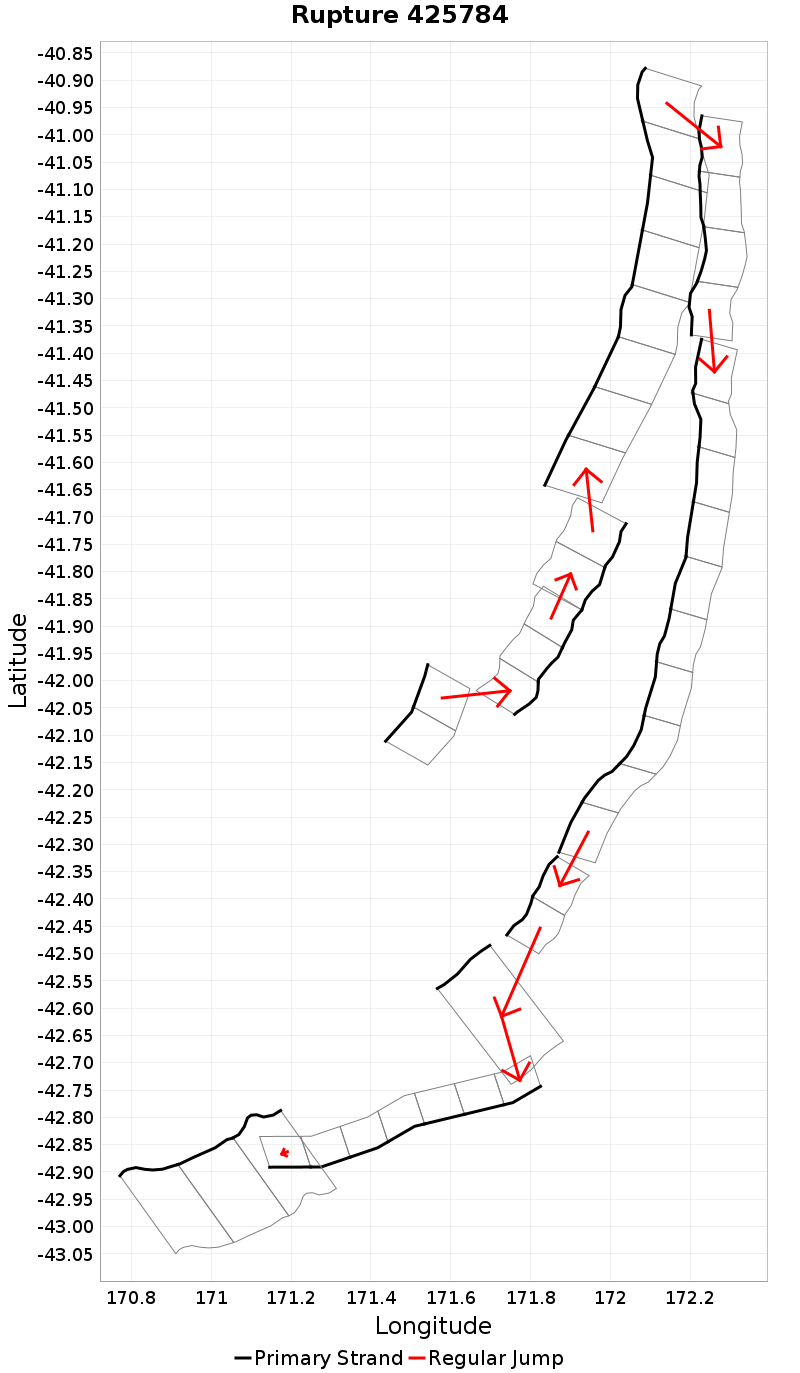

Rupture 425784
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 443.5 | 8 | 42 | 10 | 10,251.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.4 | 15.8 | 3 | 296.1 | -86.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 200 | 3 | 783.3 | 1.7403156E-7 |
Text representation:
[457:1800,1801][307:1244,1243,1242][222:906,907][270:1089,1090,1091,1092,1093,1094,1095,1096][268:1083,1084,1085,1086][697:2684,2685,2686,2687,2688,2689,2690,2691,2692,2693][698:2695,2694][192:778][251:1013,1012,1011,1010,1009,1008,1007][193:789,788,787]
Fault section list. First section listed is North East relative to the last section.
- Paparoa West
- 1800, 1801 (jump to 1244, 1.8km)
- Maimai: North
- 1244, 1243, 1242 (jump to 906, 0km)
- Inangahua
- 906, 907 (jump to 1089, 0.9km)
- Kongahau
- 1089, 1090, 1091, 1092, 1093, 1094, 1095, 1096 (jump to 1083, 5.4km)
- Kohaihai
- 1083, 1084, 1085, 1086 (jump to 2684, 2.2km)
- White Creek
- 2684, 2685, 2686, 2687, 2688, 2689, 2690, 2691, 2692, 2693 (jump to 2695, 1km)
- White Creek - buried
- 2695, 2694 (jump to 778, 4.1km)
- Hohonu North
- 778 (jump to 1013, 0.1km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 789, 0.3km)
- Hohonu South
- 789, 788, 787
