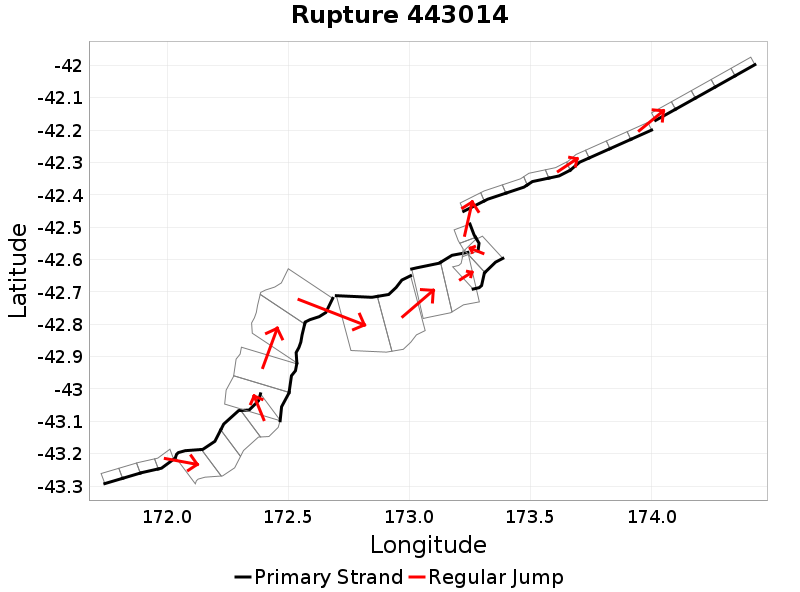

Rupture 443014
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 294.7 | 7.7 | 34 | 11 | 6,344 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.9 | 13.6 | 1.1 | 32.1 | -56.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 220 | 5 | 782.6 | 1.6656858E-9 |
Text representation:
[478:1892,1893,1894,1895][284:1150,1151,1152,1153][355:1426,1427][216:886,887][356:1428,1429][586:2274,2275][213:874,873][280:1142,1141][198:811,810,809,808,807][205:830,831,832,833][207:843,842,841,840,839]
Fault section list. First section listed is South West relative to the last section.
- Porters Pass
- 1892, 1893, 1894, 1895 (jump to 1150, 0.9km)
- Lees Valley
- 1150, 1151, 1152, 1153 (jump to 1426, 0.2km)
- Mt Arden
- 1426, 1427 (jump to 886, 0.3km)
- Hurunui Peak
- 886, 887 (jump to 1428, 1.5km)
- Mt Culverden
- 1428, 1429 (jump to 2274, 1.7km)
- The Humps
- 2274, 2275 (jump to 874, 0.2km)
- Hundalee
- 874, 873 (jump to 1142, 0.2km)
- Leader: Central
- 1142, 1141 (jump to 811, 4.9km)
- Hope: Conway
- 811, 810, 809, 808, 807 (jump to 830, 0km)
- Hope: Seaward
- 830, 831, 832, 833 (jump to 843, 3.5km)
- Hope: Te Rapa
- 843, 842, 841, 840, 839
