Rupture 490126
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 376.5 | 7.9 | 36 | 6 | 8,633.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9.5 | 16.4 | 1.1 | 23.7 | -70 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 355 | 3 | 759.8 | 4.7623503E-6 |
Text representation:
[612:2351,2352,2353,2354,2355][61:296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][613:2363,2362][27:153,152,151,150,149,148,147][5:20,19,18]

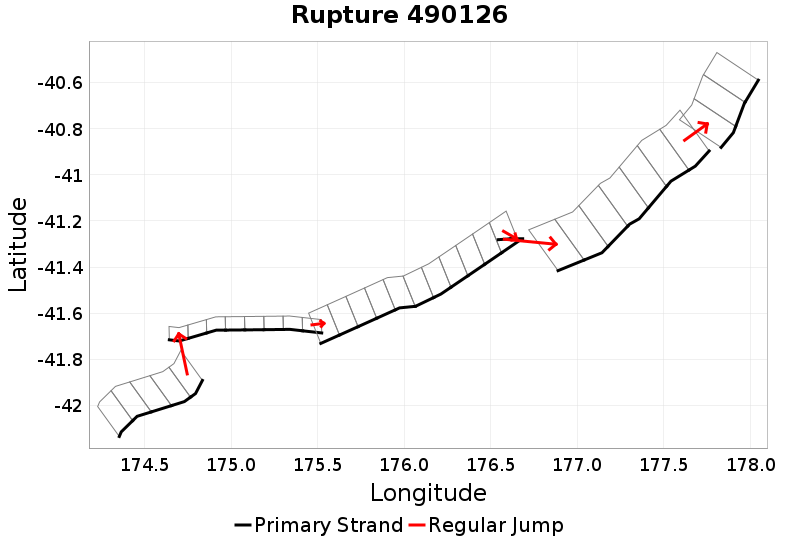

Fault section list. First section listed is South West relative to the last section.
- Upper Slope
- 2351, 2352, 2353, 2354, 2355 (jump to 296, 9.5km)
- BooBoo
- 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2363, 0.3km)
- Uruti Basin
- 2363, 2362 (jump to 153, 4.9km)
- Aorangi Trough
- 153, 152, 151, 150, 149, 148, 147 (jump to 20, 1.5km)
- Akitio Ridge
- 20, 19, 18
