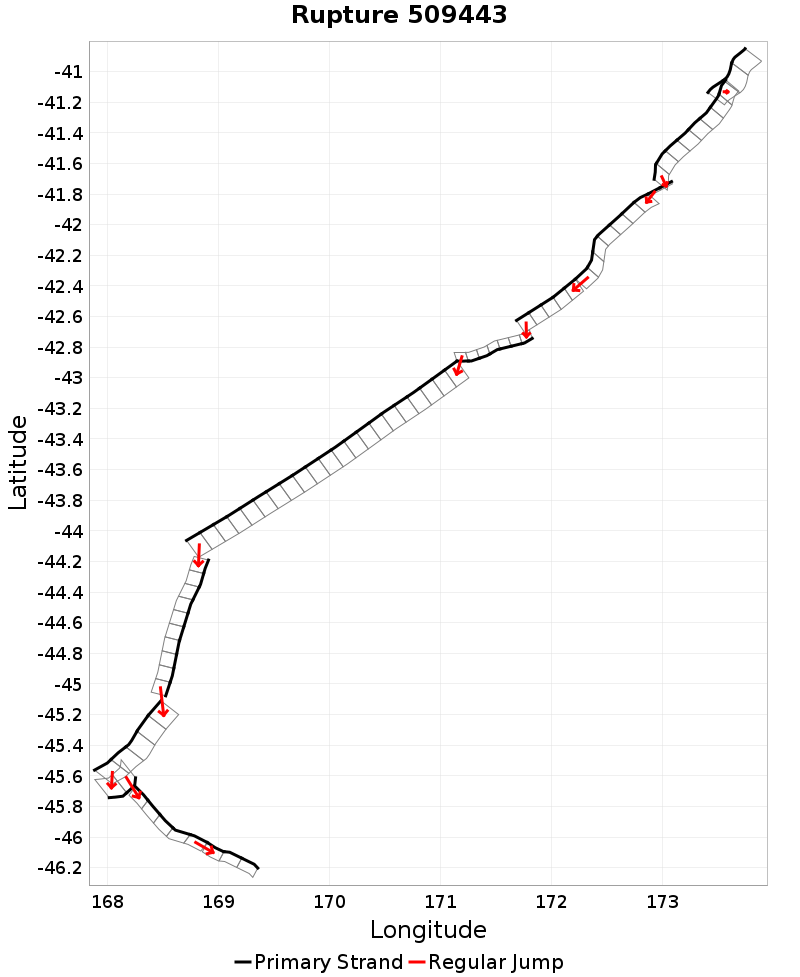

Rupture 509443
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 896.2 | 8.3 | 78 | 12 | 22,528.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 9 | 1.3 | 181.3 | -55.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 290 | 4 | 1,416.3 | 1.1523107E-8 |
Text representation:
[641:2458,2457,2456][690:2650,2651,2652,2653,2654,2655,2656,2657][655:2530,2531][24:130,129,128,127,126,125,124][19:96,97,98,99,100][251:1013,1012,1011,1010,1009,1008,1007][18:95,94,93,92,91,90,89,88,87,86,85,84,83,82,81,80,79,78,77,76,75][342:1371,1372,1373,1374,1375,1376,1377,1378,1379,1380][343:1381,1382,1383,1384,1385][345:1390,1391][194:791,792,793,794,795][189:767,768,769]
Fault section list. First section listed is North East relative to the last section.
- Waimea Offshore
- 2458, 2457, 2456 (jump to 2650, 0.8km)
- Whangamoa
- 2650, 2651, 2652, 2653, 2654, 2655, 2656, 2657 (jump to 2530, 0.2km)
- Wairau
- 2530, 2531 (jump to 130, 0km)
- Alpine: Springs Junction to Tophouse
- 130, 129, 128, 127, 126, 125, 124 (jump to 96, 0km)
- Alpine: Kaniere to Springs Junction
- 96, 97, 98, 99, 100 (jump to 1013, 0.5km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94, 93, 92, 91, 90, 89, 88, 87, 86, 85, 84, 83, 82, 81, 80, 79, 78, 77, 76, 75 (jump to 1371, 1.5km)
- Moonlight North
- 1371, 1372, 1373, 1374, 1375, 1376, 1377, 1378, 1379, 1380 (jump to 1381, 4.7km)
- Moonlight South
- 1381, 1382, 1383, 1384, 1385 (jump to 1390, 0.2km)
- Mossburn
- 1390, 1391 (jump to 791, 1.2km)
- Hokonui
- 791, 792, 793, 794, 795 (jump to 767, 0km)
- Hillfoot
- 767, 768, 769
