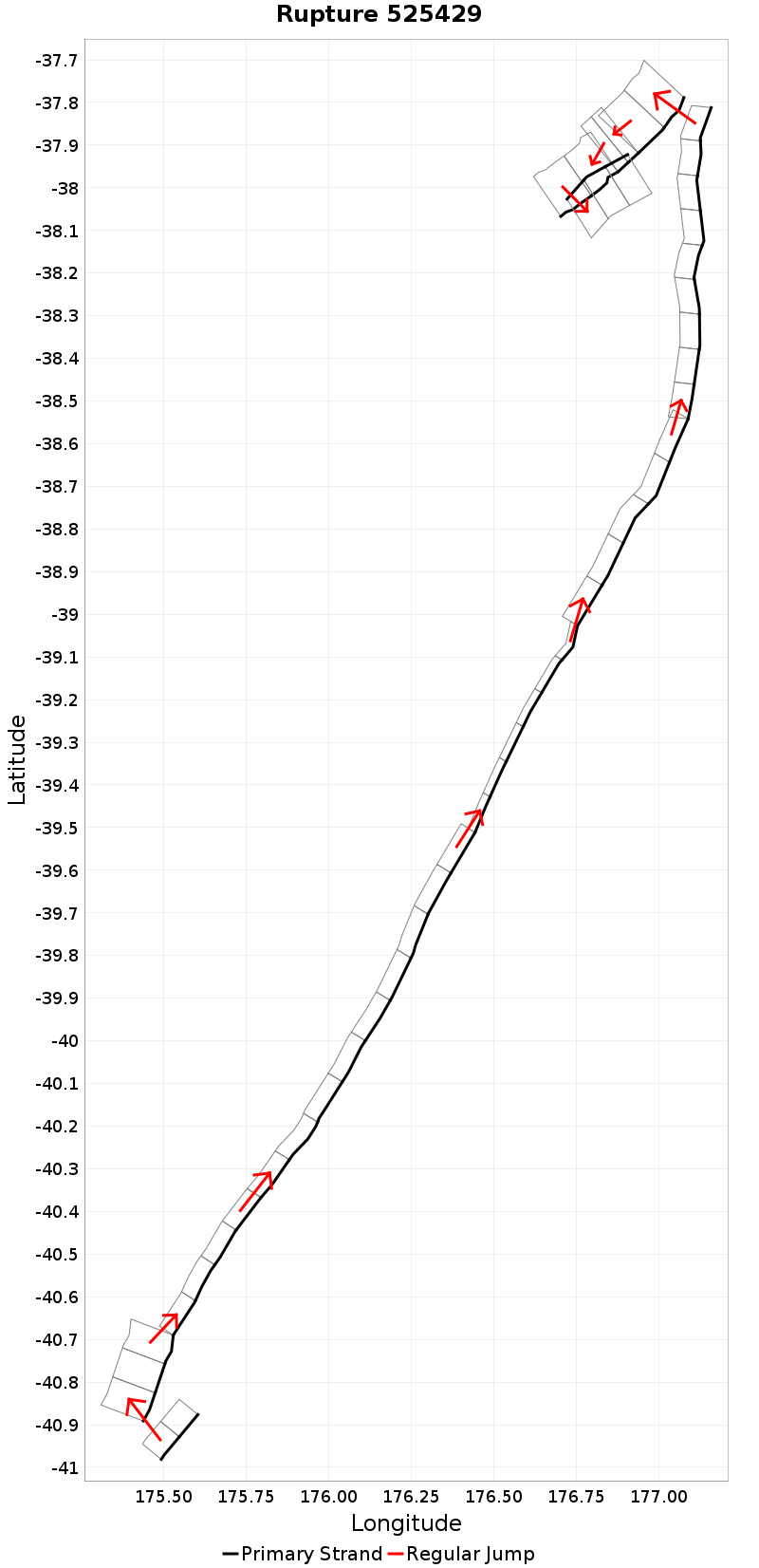

Rupture 525429
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 463 | 8 | 47 | 11 | 10,721.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9.1 | 16.8 | 1.2 | 89.9 | 4.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 160 | 3 | 782.6 | 2.3484594E-7 |
Text representation:
[652:2512,2511][681:2609,2608,2607][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][636:2442,2443,2444,2445,2446][635:2441,2440,2439,2438,2437,2436,2435,2434,2433][700:2700,2699][129:558,559][128:557,556][435:1714,1713,1712]
Fault section list. First section listed is South West relative to the last section.
- Wairarapa: 3
- 2512, 2511 (jump to 2609, 9.1km)
- Wellington: Tararua 3
- 2609, 2608, 2607 (jump to 2601, 0km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2442, 0km)
- Waimana: South
- 2442, 2443, 2444, 2445, 2446 (jump to 2441, 0km)
- Waimana: North
- 2441, 2440, 2439, 2438, 2437, 2436, 2435, 2434, 2433 (jump to 2700, 7.5km)
- White Island 1
- 2700, 2699 (jump to 558, 0km)
- Edgecumbe Coastal
- 558, 559 (jump to 557, 0km)
- Edgecumbe 1987
- 557, 556 (jump to 1714, 0.2km)
- Otakiri
- 1714, 1713, 1712
