Rupture 571543
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 424 | 7.9 | 43 | 10 | 9,208.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10 | 20.3 | 1.1 | 46.1 | -16.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 330 | 3 | 568.9 | 2.9461773E-7 |
Text representation:
[698:2695,2694][192:778][96:463,462,461,460,459,458,457][94:446,447,448,449,450][143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][426:1674,1675,1676][196:800,801,802]

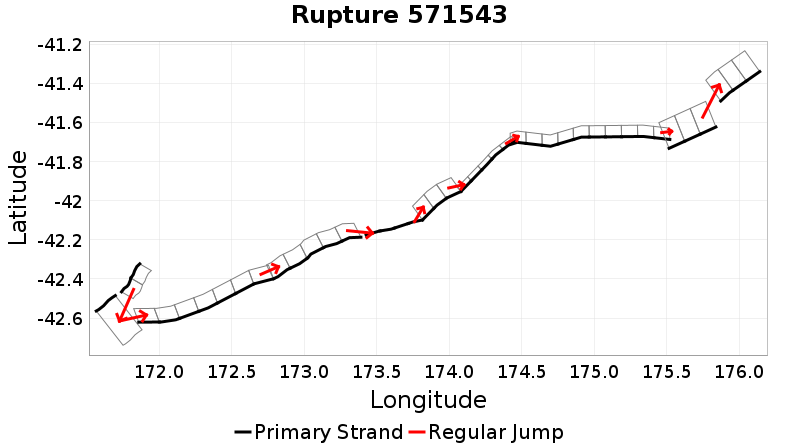

Fault section list. First section listed is South West relative to the last section.
- White Creek - buried
- 2695, 2694 (jump to 778, 4.1km)
- Hohonu North
- 778 (jump to 463, 2.6km)
- Clarence: Southwest
- 463, 462, 461, 460, 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 612, 3.2km)
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676 (jump to 800, 10km)
- Honeycomb
- 800, 801, 802
