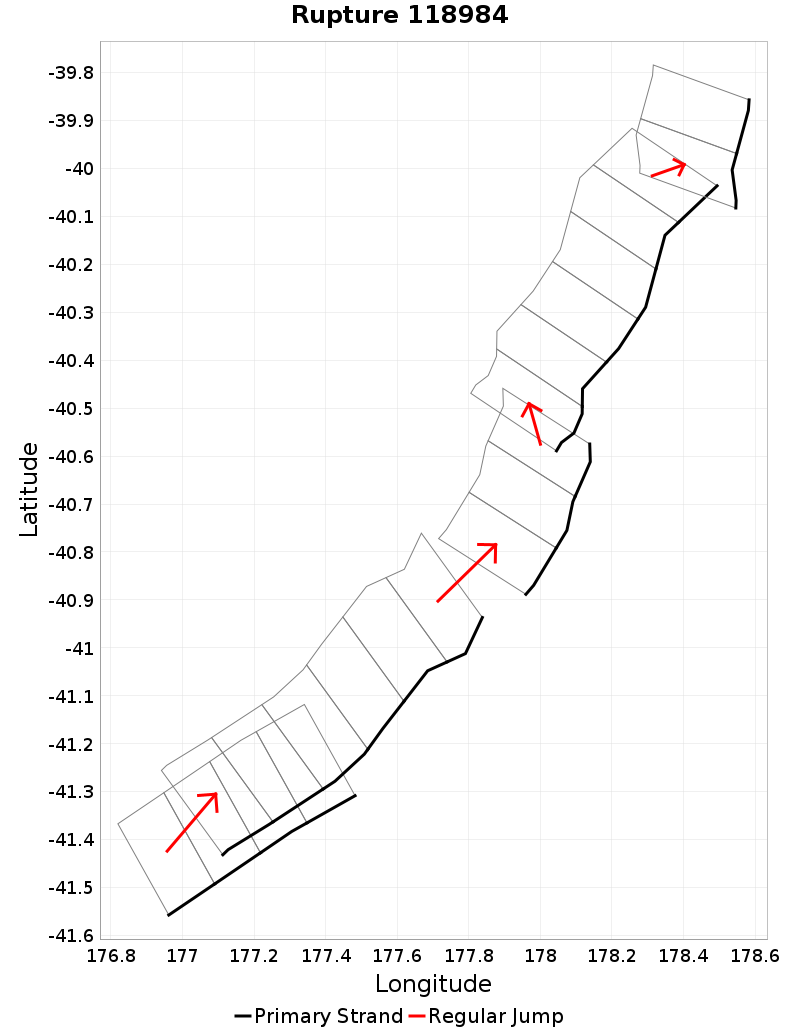

Rupture 118984
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 274.8 | 7.8 | 21 | 5 | 7,694.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 3.1 | 8.2 | 1.4 | 77.3 | -90 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 494.4 | 0.0050027655 |
Text representation:
[139:591,590,589,588][26:142,141,140,139,138,137][135:579,578,577][5:17,16,15,14,13,12][529:2064,2063]
Fault section list. First section listed is South West relative to the last section.
- F17 - South
- 591, 590, 589, 588 (jump to 142, 2.1km)
- Aorangi Ridge
- 142, 141, 140, 139, 138, 137 (jump to 579, 3.1km)
- F16 - Central
- 579, 578, 577 (jump to 17, 2.3km)
- Akitio Ridge
- 17, 16, 15, 14, 13, 12 (jump to 2064, 0.7km)
- Rock Garden - Ritchie East 1
- 2064, 2063
