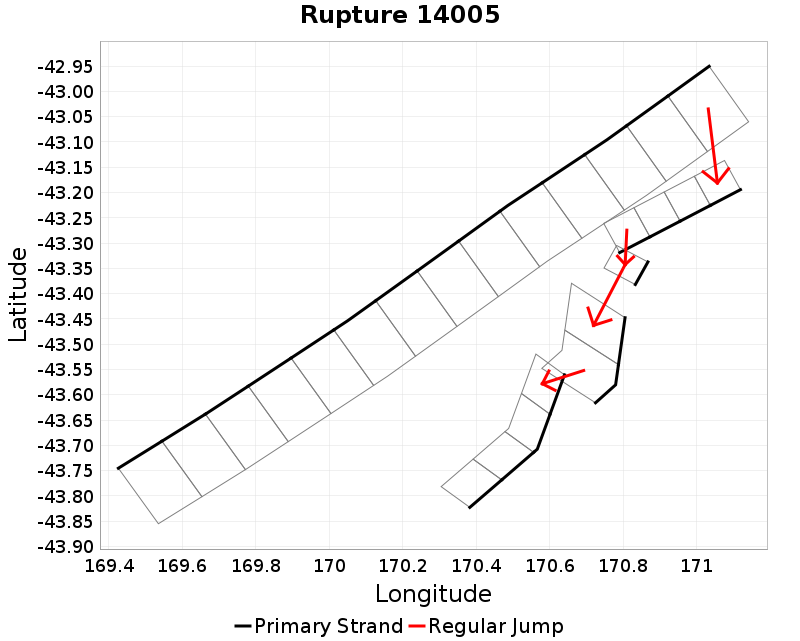

Rupture 14005
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 250.8 | 7.7 | 25 | 5 | 5,646.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.9 | 14.5 | 1.6 | 93.5 | -38.4 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 90 | 2 | 437 | 2.3035454E-5 |
Text representation:
[18:81,82,83,84,85,86,87,88,89,90,91,92,93,94][399:1582,1581,1580,1579][226:918][610:2343,2344][289:1172,1171,1170,1169]
Fault section list. First section listed is North West relative to the last section.
- Alpine: Jacksons to Kaniere
- 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94 (jump to 1582, 1.4km)
- Observation
- 1582, 1581, 1580, 1579 (jump to 918, 4.4km)
- Jollie Range
- 918 (jump to 2343, 6.9km)
- Two Thumb Stream
- 2343, 2344 (jump to 1172, 1.8km)
- Lilybank
- 1172, 1171, 1170, 1169
