Rupture 158840
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 892 | 8.3 | 77 | 10 | 22,594.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 8.8 | 1.2 | 150.6 | -56.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 250 | 3 | 1,314.7 | 3.2408738E-7 |
Text representation:
[194:795,794,793,792,791][345:1391,1390][343:1385,1384,1383,1382,1381][342:1380,1379,1378,1377,1376,1375,1374,1373,1372,1371][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][19:100,99,98,97,96][24:124,125,126,127,128,129,130][690:2658,2657,2656,2655,2654,2653,2652,2651,2650][641:2456,2457,2458,2459,2460,2461]

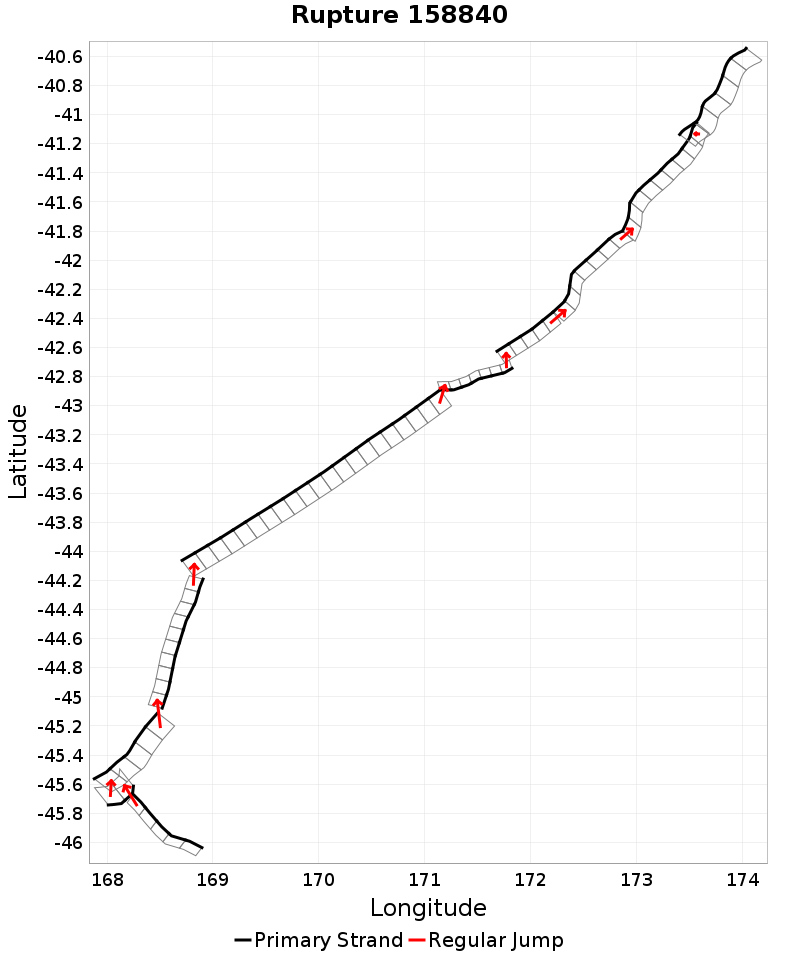

Fault section list. First section listed is South West relative to the last section.
- Hokonui
- 795, 794, 793, 792, 791 (jump to 1391, 1.2km)
- Mossburn
- 1391, 1390 (jump to 1385, 0.2km)
- Moonlight South
- 1385, 1384, 1383, 1382, 1381 (jump to 1380, 4.7km)
- Moonlight North
- 1380, 1379, 1378, 1377, 1376, 1375, 1374, 1373, 1372, 1371 (jump to 75, 1.5km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 100, 0.5km)
- Alpine: Kaniere to Springs Junction
- 100, 99, 98, 97, 96 (jump to 124, 0km)
- Alpine: Springs Junction to Tophouse
- 124, 125, 126, 127, 128, 129, 130 (jump to 2658, 0km)
- Whangamoa
- 2658, 2657, 2656, 2655, 2654, 2653, 2652, 2651, 2650 (jump to 2456, 0.8km)
- Waimea Offshore
- 2456, 2457, 2458, 2459, 2460, 2461
