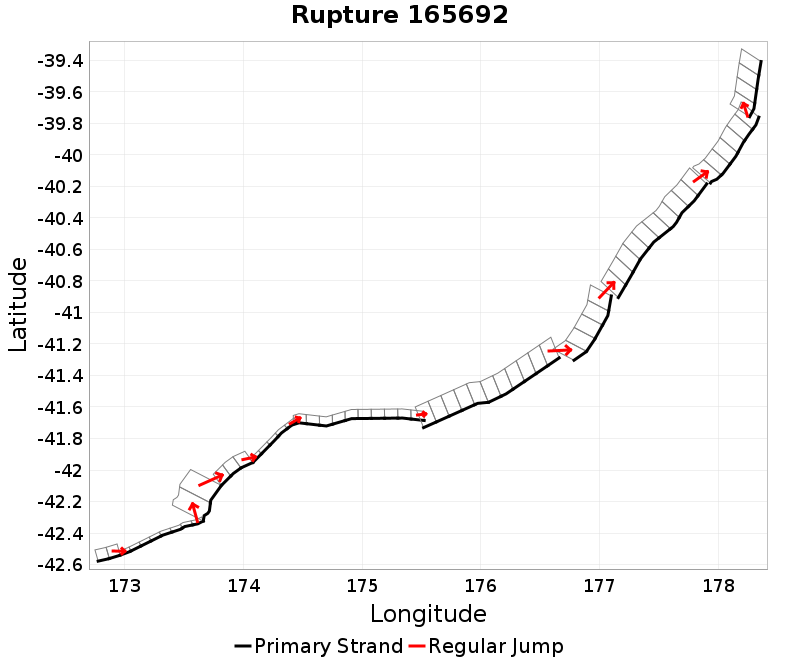

Rupture 165692
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 634.4 | 8.1 | 66 | 11 | 13,215.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.5 | 15.5 | 1.1 | 48.3 | -62.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 290 | 3 | 831 | 1.6640419E-7 |
Text representation:
[199:815,816][198:814,813,812,811,810,809,808,807][227:919,920][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][615:2368,2369,2370,2371,2372][473:1855,1856,1857,1858,1859,1860,1861,1862,1863,1864][455:1794,1793,1792,1791,1790,1789][522:2033,2034,2035,2036]
Fault section list. First section listed is South West relative to the last section.
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808, 807 (jump to 919, 0km)
- Jordan
- 919, 920 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2368, 5.5km)
- Uruti East - PorWest 1
- 2368, 2369, 2370, 2371, 2372 (jump to 1855, 3.8km)
- PorWest2 - PaoanuiRSouth
- 1855, 1856, 1857, 1858, 1859, 1860, 1861, 1862, 1863, 1864 (jump to 1794, 1.9km)
- Paoanui Ridge North
- 1794, 1793, 1792, 1791, 1790, 1789 (jump to 2033, 3.9km)
- Ritchie West 1
- 2033, 2034, 2035, 2036
