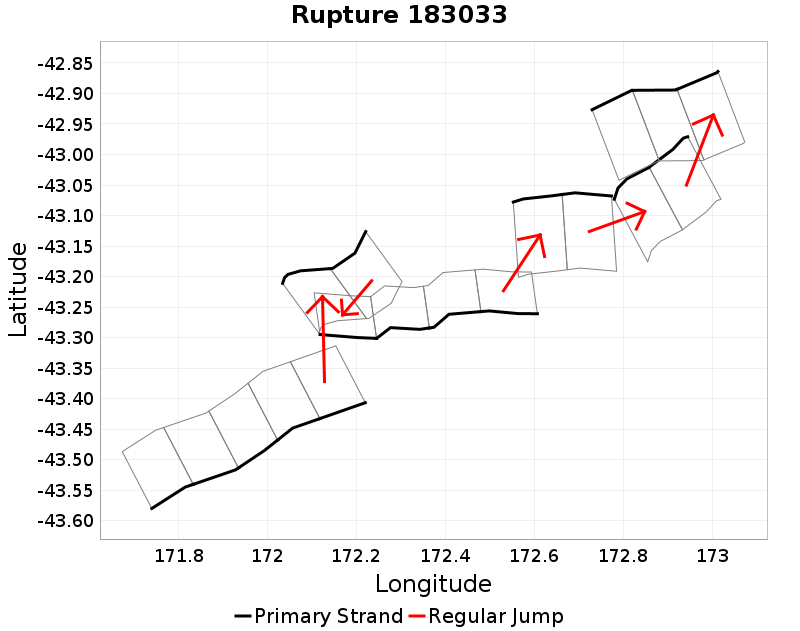

Rupture 183033
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 165.2 | 7.5 | 18 | 6 | 3,546 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.7 | 13.9 | 1.3 | 34.9 | -62.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 70 | 1 | 782.3 | 0.0020111275 |
Text representation:
[209:852,851,850,849,848][284:1150,1151][560:2186,2185,2184,2183][60:288,287][420:1649,1650][10:49,48,47]
Fault section list. First section listed is South West relative to the last section.
- Hororata
- 852, 851, 850, 849, 848 (jump to 1150, 5.5km)
- Lees Valley
- 1150, 1151 (jump to 2186, 0.3km)
- Starvation - Ashley
- 2186, 2185, 2184, 2183 (jump to 288, 0.6km)
- Boby Stream
- 288, 287 (jump to 1649, 0.8km)
- OmihiLwrHuru
- 1649, 1650 (jump to 49, 6.7km)
- Alexander
- 49, 48, 47
