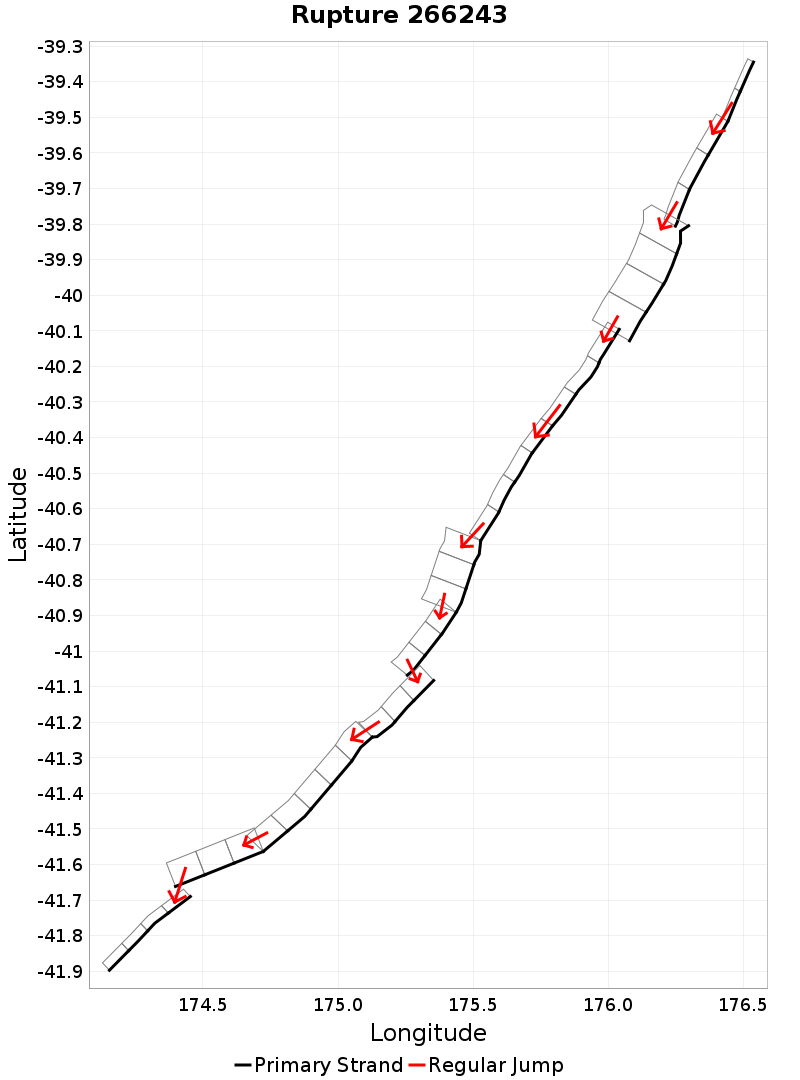

Rupture 266243
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 365.4 | 7.9 | 37 | 11 | 8,261.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 11.7 | 1.1 | 17.5 | -23.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 250 | 5 | 432.3 | 1.20241115E-8 |
Text representation:
[337:1346,1345][338:1359,1358,1357][501:1980,1981,1982,1983][338:1353,1352,1351][678:2598,2599,2600,2601][681:2607,2608,2609][680:2604,2605,2606][651:2508,2507,2506][650:2505,2504,2503,2502,2501][653:2515,2516,2517][367:1460,1461,1462,1463]
Fault section list. First section listed is North East relative to the last section.
- Mohaka: North
- 1346, 1345 (jump to 1359, 0km)
- Mohaka: South
- 1359, 1358, 1357 (jump to 1980, 0.3km)
- Rangefront
- 1980, 1981, 1982, 1983 (jump to 1353, 0.5km)
- Mohaka: South
- 1353, 1352, 1351 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599, 2600, 2601 (jump to 2607, 0km)
- Wellington: Tararua 3
- 2607, 2608, 2609 (jump to 2604, 0km)
- Wellington: Tararua 2
- 2604, 2605, 2606 (jump to 2508, 6.4km)
- Wairarapa: 2
- 2508, 2507, 2506 (jump to 2505, 0km)
- Wairarapa: 1
- 2505, 2504, 2503, 2502, 2501 (jump to 2515, 0km)
- Wairarapa: Needles
- 2515, 2516, 2517 (jump to 1460, 4.6km)
- Needles
- 1460, 1461, 1462, 1463
