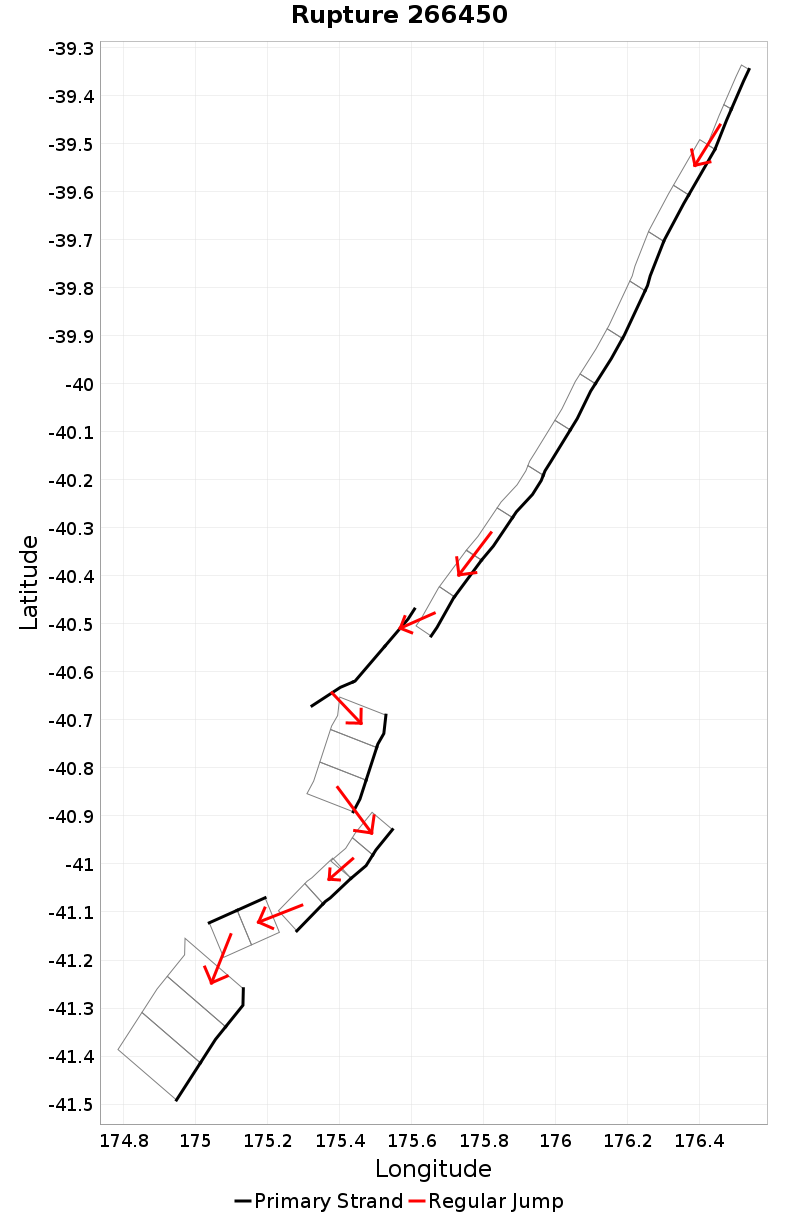

Rupture 266450
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 286.7 | 7.8 | 28 | 9 | 6,814.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9.1 | 19.8 | 1 | 12.6 | -22.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 260 | 4 | 511.9 | 2.9696777E-8 |
Text representation:
[337:1346,1345][338:1359,1358,1357,1356,1355,1354,1353,1352,1351][678:2598,2599][396:1567,1568,1569][681:2607,2608,2609][652:2511,2510][651:2509,2508][677:2596,2597][693:2673,2672,2671]
Fault section list. First section listed is North East relative to the last section.
- Mohaka: North
- 1346, 1345 (jump to 1359, 0km)
- Mohaka: South
- 1359, 1358, 1357, 1356, 1355, 1354, 1353, 1352, 1351 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599 (jump to 1567, 2.5km)
- Northern Ohariu
- 1567, 1568, 1569 (jump to 2607, 1.8km)
- Wellington: Tararua 3
- 2607, 2608, 2609 (jump to 2511, 9.1km)
- Wairarapa: 3
- 2511, 2510 (jump to 2509, 0km)
- Wairarapa: 2
- 2509, 2508 (jump to 2596, 2.3km)
- Wellington Hutt Valley: 5
- 2596, 2597 (jump to 2673, 4km)
- Wharekauhau
- 2673, 2672, 2671
