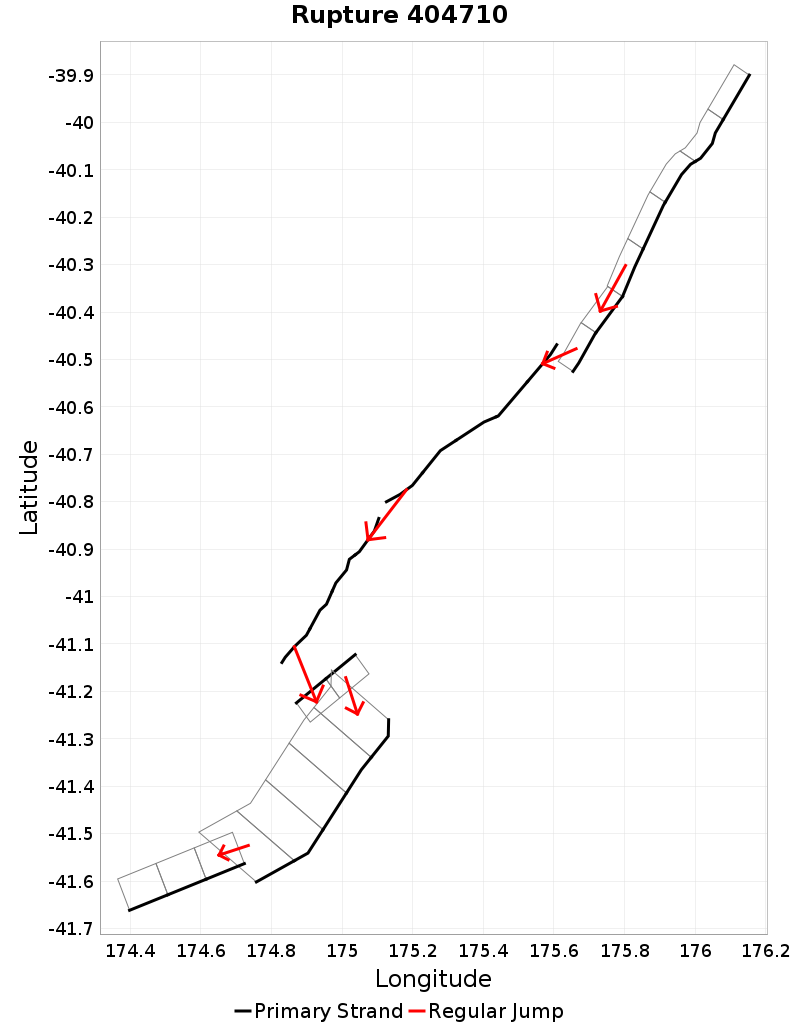

Rupture 404710
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 277.7 | 7.8 | 26 | 7 | 6,805.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9.5 | 16.9 | 1.1 | 32.3 | -19.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 240 | 4 | 518.6 | 2.9591243E-7 |
Text representation:
[534:2085,2084,2083,2082,2081][678:2598,2599][396:1567,1568,1569,1570,1571][404:1592,1593,1594,1595][676:2594,2593][693:2673,2672,2671,2670,2669][653:2515,2516,2517]
Fault section list. First section listed is North East relative to the last section.
- Ruahine: South
- 2085, 2084, 2083, 2082, 2081 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599 (jump to 1567, 2.5km)
- Northern Ohariu
- 1567, 1568, 1569, 1570, 1571 (jump to 1592, 4.3km)
- Ohariu
- 1592, 1593, 1594, 1595 (jump to 2594, 9.5km)
- Wellington Hutt Valley: 4
- 2594, 2593 (jump to 2673, 0.2km)
- Wharekauhau
- 2673, 2672, 2671, 2670, 2669 (jump to 2515, 0.4km)
- Wairarapa: Needles
- 2515, 2516, 2517
