Rupture 40864
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 273.6 | 7.8 | 24 | 8 | 7,070.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.8 | 16.3 | 1.2 | 35.9 | -90.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 4 | 853 | 5.6522424E-8 |
Text representation:
[26:143,142,141,140][137:585,584,583][43:236,237,238][5:20,19,18][42:226,227][134:576,575][5:15,14,13,12][529:2064,2063,2062]

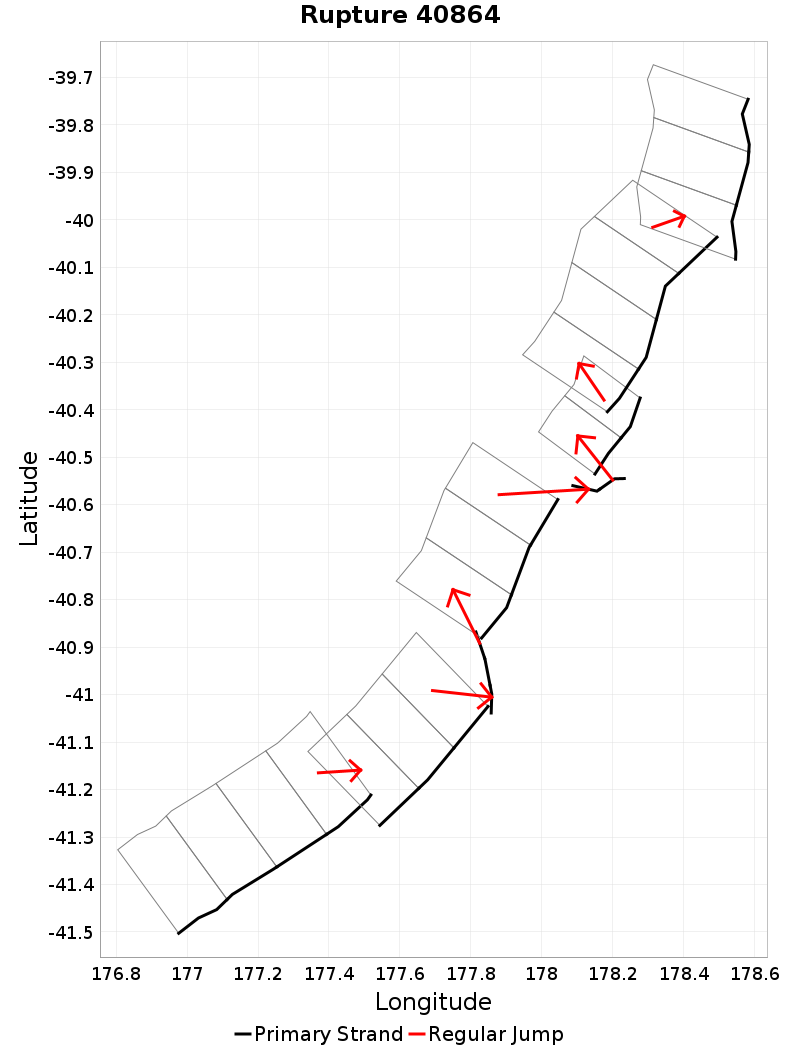

Fault section list. First section listed is South West relative to the last section.
- Aorangi Ridge
- 143, 142, 141, 140 (jump to 585, 3.2km)
- F16 - South
- 585, 584, 583 (jump to 236, 0.9km)
- BKSmt-West
- 236, 237, 238 (jump to 20, 0.5km)
- Akitio Ridge
- 20, 19, 18 (jump to 226, 4.8km)
- BKSmt-North
- 226, 227 (jump to 576, 3.6km)
- F14 - North
- 576, 575 (jump to 15, 2.7km)
- Akitio Ridge
- 15, 14, 13, 12 (jump to 2064, 0.7km)
- Rock Garden - Ritchie East 1
- 2064, 2063, 2062
