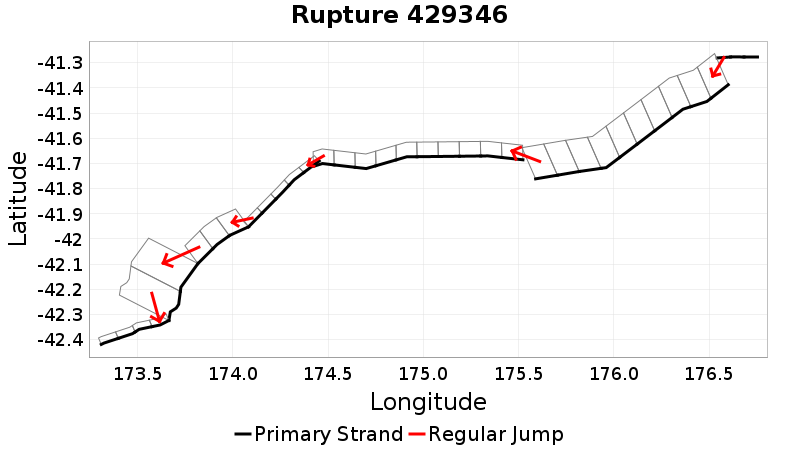

Rupture 429346
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 337.2 | 7.8 | 37 | 7 | 6,594.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 0.30231476 | 0.75681007 | 1.1 | 24.9 | -35.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 3 | 563.5 | 4.4949247E-5 |
Text representation:
[613:2364,2363,2362][446:1755,1754,1753,1752,1751,1750,1749,1748,1747,1746][61:289,290,291,292,293,294,295,296,297,298][367:1460,1461,1462,1463,1464][249:992,993,994][227:920,919][198:807,808,809,810]
Fault section list. First section listed is North East relative to the last section.
- Uruti Basin
- 2364, 2363, 2362 (jump to 1755, 0.3km)
- Pahaua
- 1755, 1754, 1753, 1752, 1751, 1750, 1749, 1748, 1747, 1746 (jump to 289, 0.3km)
- BooBoo
- 289, 290, 291, 292, 293, 294, 295, 296, 297, 298 (jump to 1460, 0.2km)
- Needles
- 1460, 1461, 1462, 1463, 1464 (jump to 992, 0km)
- Kekerengu 1
- 992, 993, 994 (jump to 920, 0km)
- Jordan
- 920, 919 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810
