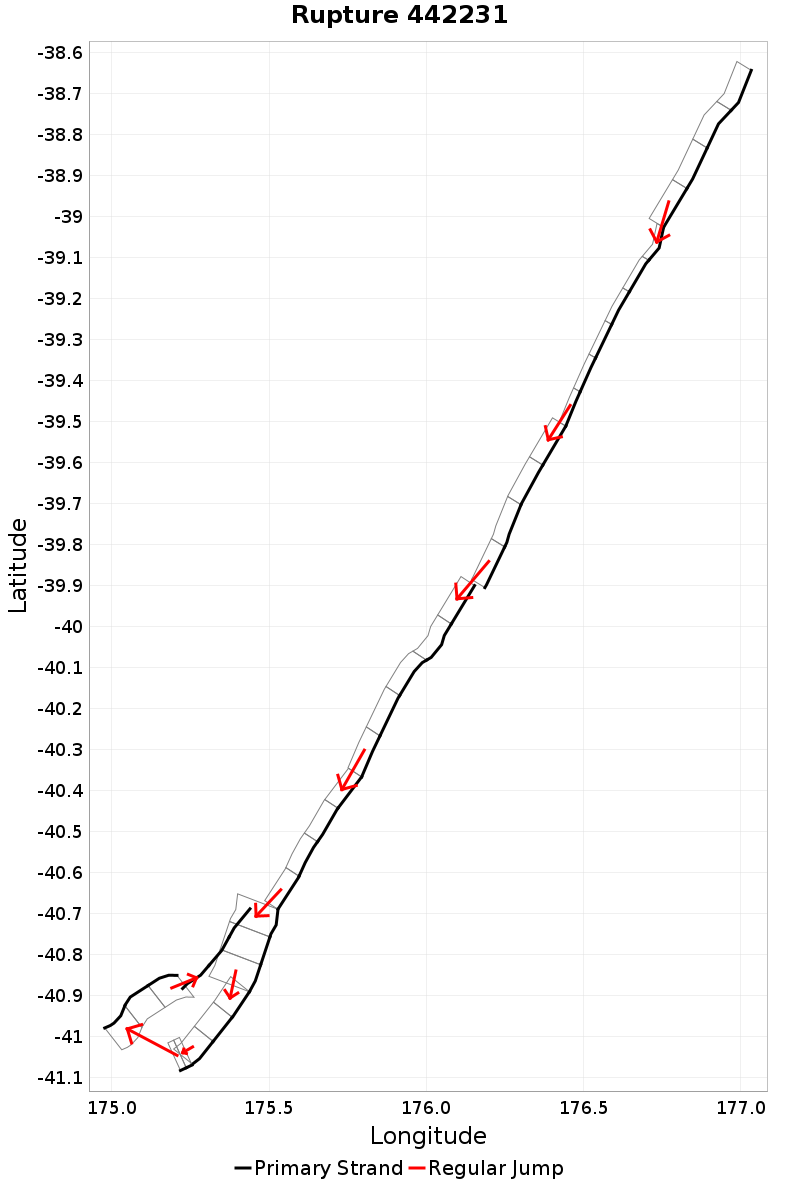

Rupture 442231
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 368.4 | 7.9 | 37 | 10 | 8,835.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.5 | 11.7 | 1.2 | 56.1 | -6.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 200 | 5 | 463.7 | 9.018084E-9 |
Text representation:
[636:2445,2444,2443,2442][337:1350,1349,1348,1347,1346,1345][338:1359,1358,1357,1356][534:2085,2084,2083,2082,2081][678:2598,2599,2600,2601][681:2607,2608,2609][680:2604,2605,2606][679:2602,2603][159:670,671,672][434:1711,1710,1709]
Fault section list. First section listed is North East relative to the last section.
- Waimana: South
- 2445, 2444, 2443, 2442 (jump to 1350, 0km)
- Mohaka: North
- 1350, 1349, 1348, 1347, 1346, 1345 (jump to 1359, 0km)
- Mohaka: South
- 1359, 1358, 1357, 1356 (jump to 2085, 2.8km)
- Ruahine: South
- 2085, 2084, 2083, 2082, 2081 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599, 2600, 2601 (jump to 2607, 0km)
- Wellington: Tararua 3
- 2607, 2608, 2609 (jump to 2604, 0km)
- Wellington: Tararua 2
- 2604, 2605, 2606 (jump to 2602, 0.1km)
- Wellington: Tararua 1
- 2602, 2603 (jump to 670, 8.5km)
- Gibbs
- 670, 671, 672 (jump to 1711, 0.3km)
- Otaki Forks: 2
- 1711, 1710, 1709
