Rupture 452166
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 923.3 | 8.3 | 88 | 20 | 21,974.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 19.5 | 1.1 | 57.1 | -29.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 350 | 6 | 1,141.6 | 2.9919903E-12 |
Text representation:
[643:2475,2474,2473,2472,2471,2470][533:2076,2077,2078,2079,2080][532:2075,2074,2073,2072][534:2085,2084,2083,2082,2081][678:2598,2599,2600,2601][681:2607,2608,2609][680:2604,2605,2606][651:2508,2507,2506][650:2505,2504,2503,2502,2501][653:2515,2516,2517][367:1460,1461,1462,1463,1464][249:992,993,994][143:609,610,611,612][94:450,449,448,447,446][96:457,458,459,460,461,462,463][192:778,777][191:775,776][193:790,789,788,787,786,785,784,783,782,781,780,779][332:1327,1328][279:1136,1137,1138,1139,1140]

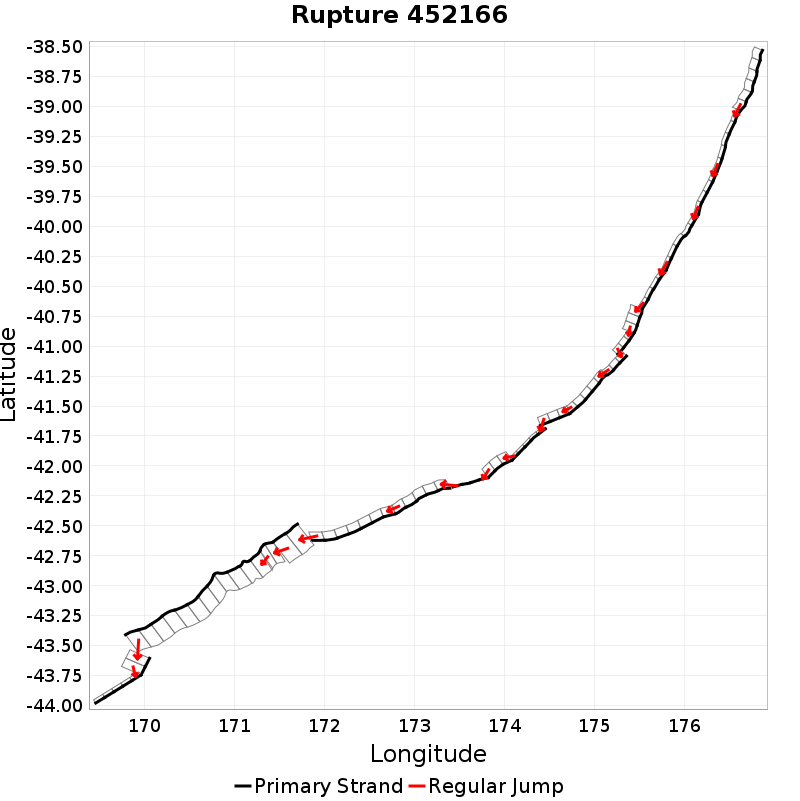

Fault section list. First section listed is North East relative to the last section.
- Waiohau: South
- 2475, 2474, 2473, 2472, 2471, 2470 (jump to 2076, 0km)
- Ruahine: North
- 2076, 2077, 2078, 2079, 2080 (jump to 2075, 0km)
- Ruahine: Central
- 2075, 2074, 2073, 2072 (jump to 2085, 0.2km)
- Ruahine: South
- 2085, 2084, 2083, 2082, 2081 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599, 2600, 2601 (jump to 2607, 0km)
- Wellington: Tararua 3
- 2607, 2608, 2609 (jump to 2604, 0km)
- Wellington: Tararua 2
- 2604, 2605, 2606 (jump to 2508, 6.4km)
- Wairarapa: 2
- 2508, 2507, 2506 (jump to 2505, 0km)
- Wairarapa: 1
- 2505, 2504, 2503, 2502, 2501 (jump to 2515, 0km)
- Wairarapa: Needles
- 2515, 2516, 2517 (jump to 1460, 4.6km)
- Needles
- 1460, 1461, 1462, 1463, 1464 (jump to 992, 0km)
- Kekerengu 1
- 992, 993, 994 (jump to 609, 0km)
- Fidget
- 609, 610, 611, 612 (jump to 450, 3.2km)
- Clarence: Central
- 450, 449, 448, 447, 446 (jump to 457, 0km)
- Clarence: Southwest
- 457, 458, 459, 460, 461, 462, 463 (jump to 778, 2.6km)
- Hohonu North
- 778, 777 (jump to 775, 0km)
- Hohonu
- 775, 776 (jump to 790, 0km)
- Hohonu South
- 790, 789, 788, 787, 786, 785, 784, 783, 782, 781, 780, 779 (jump to 1327, 2.6km)
- McKerrow - Douglas Duplex
- 1327, 1328 (jump to 1136, 0km)
- Landsborough 2
- 1136, 1137, 1138, 1139, 1140
