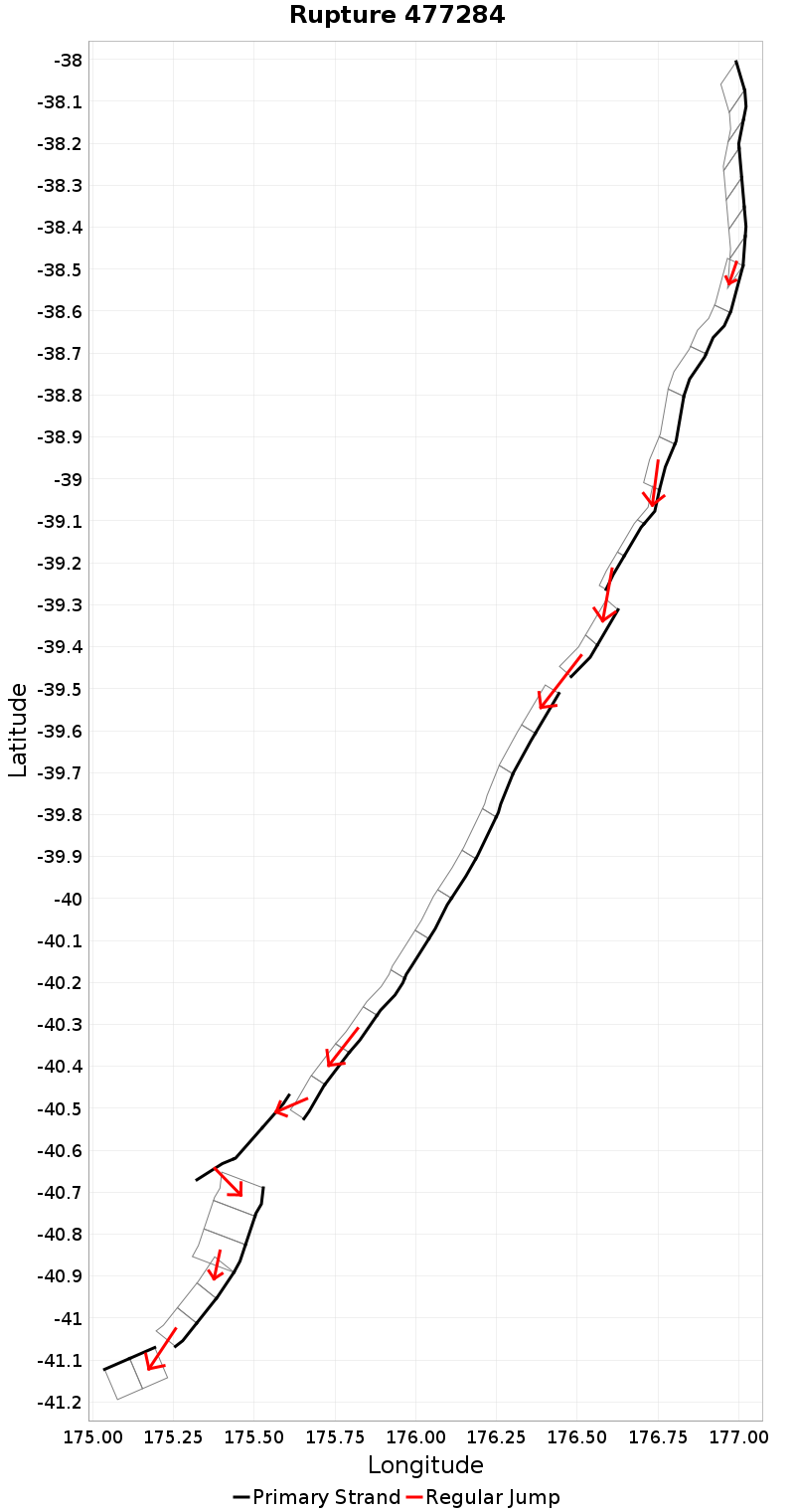

Rupture 477284
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 399.5 | 7.9 | 39 | 10 | 9,336 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.5 | 18.5 | 1 | 14.6 | -0.70955265 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 220 | 6 | 519.2 | 1.4044547E-10 |
Text representation:
[687:2635,2636,2637,2638,2639,2640,2641][688:2646,2645,2644,2643,2642][337:1350,1349,1348][463:1821,1820][338:1359,1358,1357,1356,1355,1354,1353,1352,1351][678:2598,2599][396:1567,1568,1569][681:2607,2608,2609][680:2604,2605,2606][677:2596,2597]
Fault section list. First section listed is North East relative to the last section.
- Whakatane: North
- 2635, 2636, 2637, 2638, 2639, 2640, 2641 (jump to 2646, 0km)
- Whakatane: South
- 2646, 2645, 2644, 2643, 2642 (jump to 1350, 0km)
- Mohaka: North
- 1350, 1349, 1348 (jump to 1821, 4.1km)
- Patoka - Rangiora
- 1821, 1820 (jump to 1359, 5.5km)
- Mohaka: South
- 1359, 1358, 1357, 1356, 1355, 1354, 1353, 1352, 1351 (jump to 2598, 0km)
- Wellington: Pahiatua
- 2598, 2599 (jump to 1567, 2.5km)
- Northern Ohariu
- 1567, 1568, 1569 (jump to 2607, 1.8km)
- Wellington: Tararua 3
- 2607, 2608, 2609 (jump to 2604, 0km)
- Wellington: Tararua 2
- 2604, 2605, 2606 (jump to 2596, 4.6km)
- Wellington Hutt Valley: 5
- 2596, 2597
