Rupture 497715
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 290.2 | 7.7 | 31 | 9 | 6,382 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 19.6 | 1.1 | 32.3 | -49.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 340 | 5 | 802.4 | 3.747793E-9 |
Text representation:
[702:2705,2704][693:2671,2670,2669][653:2515,2516,2517][367:1460,1461,1462,1463,1464][249:992,993,994][227:920,919][198:807,808,809,810,811,812,813,814][239:959,958][10:50,49,48]

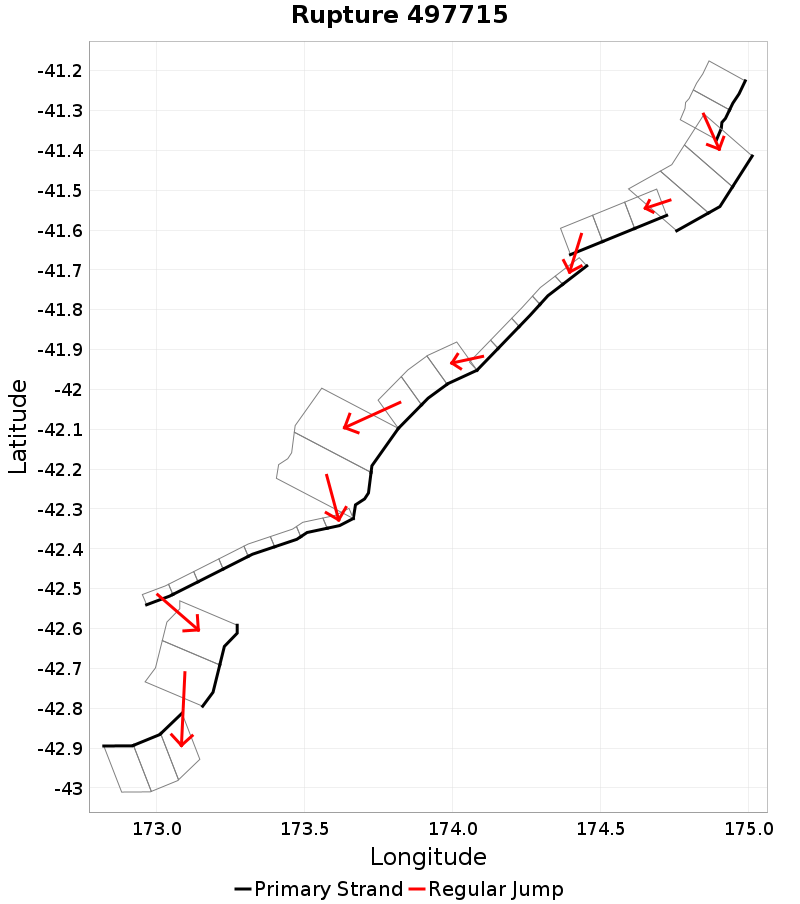

Fault section list. First section listed is North East relative to the last section.
- Whitemans Valley
- 2705, 2704 (jump to 2671, 3.1km)
- Wharekauhau
- 2671, 2670, 2669 (jump to 2515, 0.4km)
- Wairarapa: Needles
- 2515, 2516, 2517 (jump to 1460, 4.6km)
- Needles
- 1460, 1461, 1462, 1463, 1464 (jump to 992, 0km)
- Kekerengu 1
- 992, 993, 994 (jump to 920, 0km)
- Jordan
- 920, 919 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810, 811, 812, 813, 814 (jump to 959, 6.3km)
- Kaiwara North
- 959, 958 (jump to 50, 5.2km)
- Alexander
- 50, 49, 48
