Rupture 57334
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 170.6 | 7.5 | 16 | 4 | 3,798.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 1.2 | 1.2 | 1.1 | 13.4 | -49.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 50 | 0.0 | 326.5 | 0.1362963 |
Text representation:
[41:224,225][19:96,97,98,99,100,101,102,103,104][193:790,789,788][297:1196,1197]

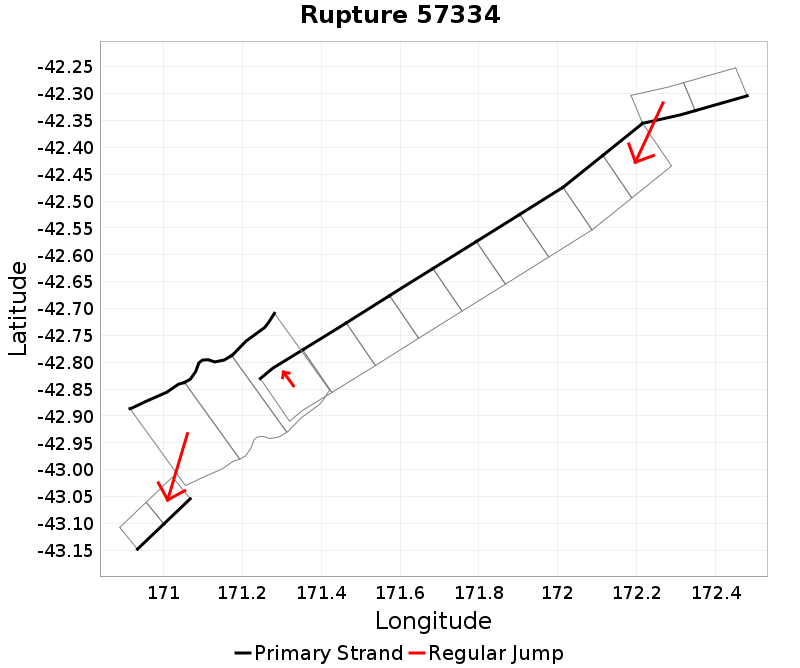

Fault section list. First section listed is North East relative to the last section.
- Awatere: Southwest
- 224, 225 (jump to 96, 0km)
- Alpine: Kaniere to Springs Junction
- 96, 97, 98, 99, 100, 101, 102, 103, 104 (jump to 790, 0km)
- Hohonu South
- 790, 789, 788 (jump to 1196, 1.2km)
- Lord Range
- 1196, 1197
