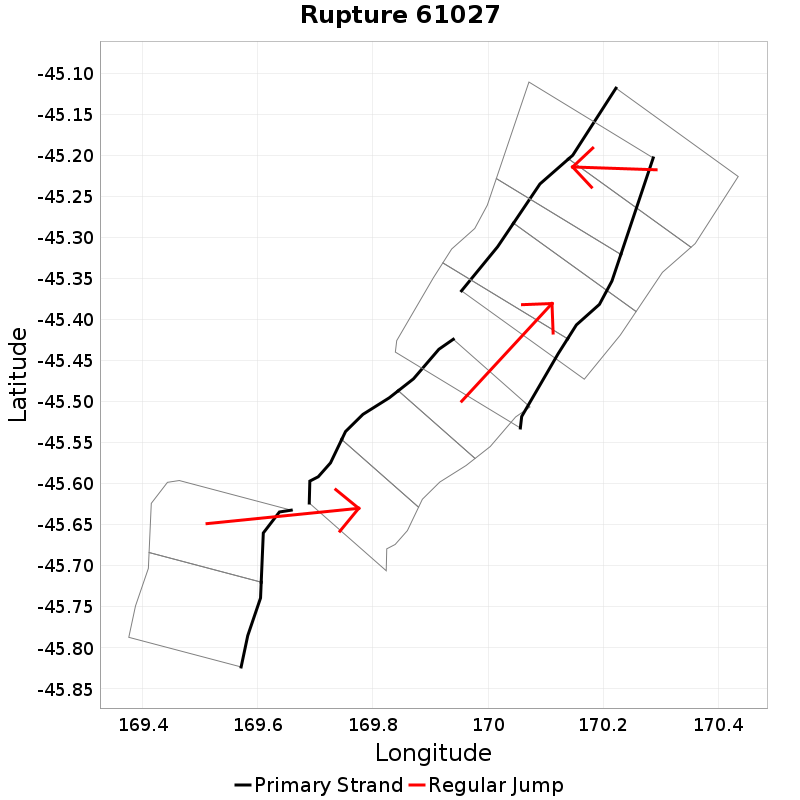

Rupture 61027
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 130.7 | 7.5 | 11 | 4 | 3,762 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 9.2 | 1.4 | 37.3 | -77.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 40 | 0.0 | 380.8 | 0.031348146 |
Text representation:
[44:239,240][294:1189,1188,1187][646:2489,2488,2487][219:898,899,900]
Fault section list. First section listed is South West relative to the last section.
- Backbone
- 239, 240 (jump to 1189, 2.6km)
- Logan Burn
- 1189, 1188, 1187 (jump to 2489, 6.3km)
- Waipiata
- 2489, 2488, 2487 (jump to 898, 0.3km)
- Hyde North
- 898, 899, 900
