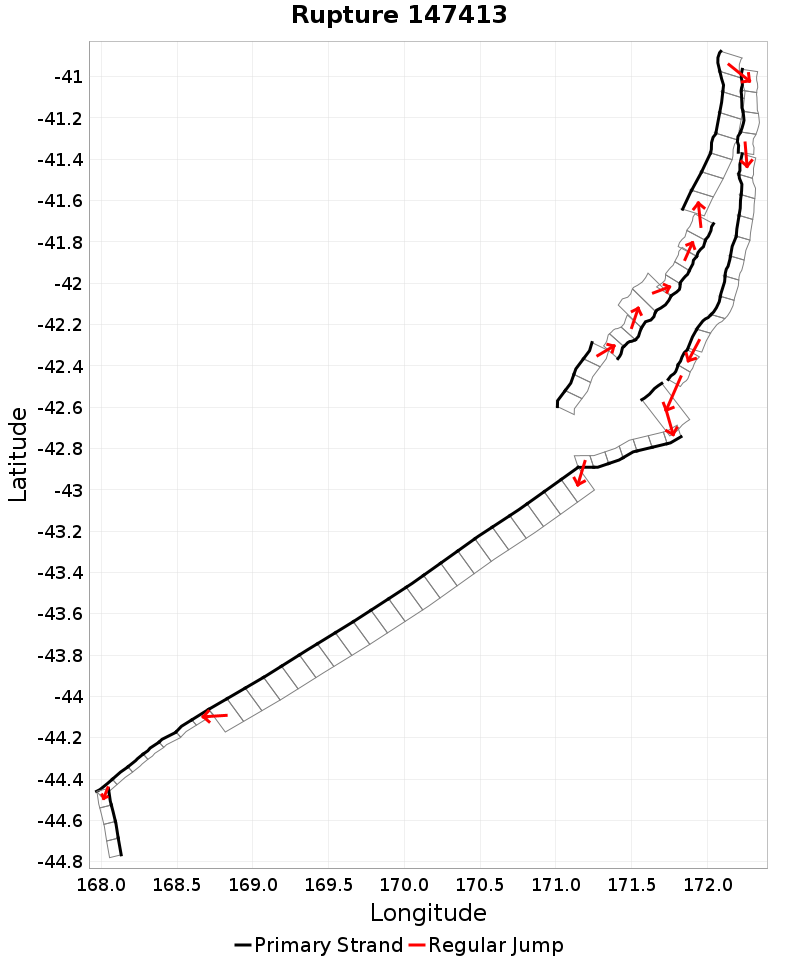

Rupture 147413
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 820.9 | 8.2 | 78 | 14 | 18,797 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.4 | 14.8 | 2.4 | 477.4 | -61 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 280 | 5 | 1,093.8 | 5.9462235E-10 |
Text representation:
[72:335,336,337,338][308:1245,1246,1247][305:1235,1236][307:1244,1243,1242][222:906,907][270:1089,1090,1091,1092,1093,1094,1095,1096][268:1083,1084,1085,1086][697:2684,2685,2686,2687,2688,2689,2690,2691,2692,2693][698:2695,2694][192:778][251:1013,1012,1011,1010,1009,1008,1007][18:95,94,93,92,91,90,89,88,87,86,85,84,83,82,81,80,79,78,77,76,75][17:74,73,72,71,70,69,68][108:491,492,493,494]
Fault section list. First section listed is North East relative to the last section.
- Cape Foulwind 1
- 335, 336, 337, 338 (jump to 1245, 0.7km)
- Maimai: South
- 1245, 1246, 1247 (jump to 1235, 0.1km)
- Maimai
- 1235, 1236 (jump to 1244, 0km)
- Maimai: North
- 1244, 1243, 1242 (jump to 906, 0km)
- Inangahua
- 906, 907 (jump to 1089, 0.9km)
- Kongahau
- 1089, 1090, 1091, 1092, 1093, 1094, 1095, 1096 (jump to 1083, 5.4km)
- Kohaihai
- 1083, 1084, 1085, 1086 (jump to 2684, 2.2km)
- White Creek
- 2684, 2685, 2686, 2687, 2688, 2689, 2690, 2691, 2692, 2693 (jump to 2695, 1km)
- White Creek - buried
- 2695, 2694 (jump to 778, 4.1km)
- Hohonu North
- 778 (jump to 1013, 0.1km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94, 93, 92, 91, 90, 89, 88, 87, 86, 85, 84, 83, 82, 81, 80, 79, 78, 77, 76, 75 (jump to 74, 0km)
- Alpine: George to Jacksons
- 74, 73, 72, 71, 70, 69, 68 (jump to 491, 0.3km)
- Darran
- 491, 492, 493, 494
