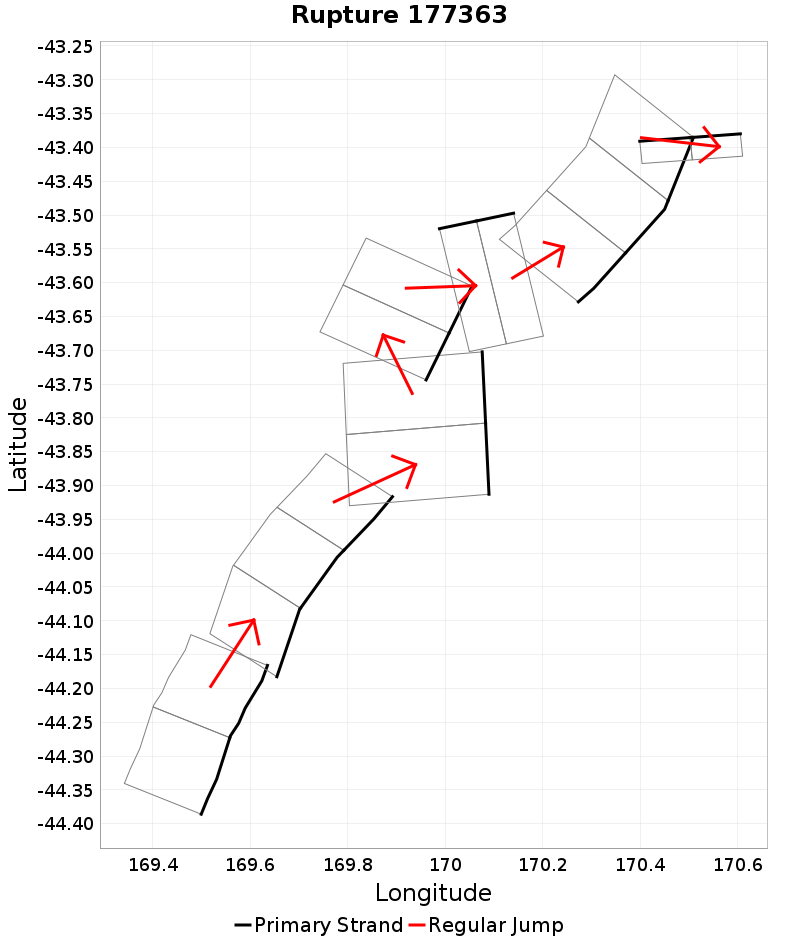

Rupture 177363
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 166 | 7.6 | 16 | 7 | 4,478.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.8 | 13.6 | 1.2 | 23.3 | -77.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 130 | 0.0 | 554.9 | 9.040899E-4 |
Text representation:
[110:498,499][208:844,845,846][168:699,700][332:1328,1327][563:2195,2196][363:1449,1448,1447][171:709,708]
Fault section list. First section listed is South West relative to the last section.
- Dingle
- 498, 499 (jump to 844, 1.8km)
- Hopkins
- 844, 845, 846 (jump to 699, 3.4km)
- Great Groove
- 699, 700 (jump to 1328, 4.8km)
- McKerrow - Douglas Duplex
- 1328, 1327 (jump to 2195, 1.7km)
- Straight Creek
- 2195, 2196 (jump to 1449, 1.6km)
- Murchison 1 - Ice Lake
- 1449, 1448, 1447 (jump to 709, 0.3km)
- Gunn Glacier
- 709, 708
