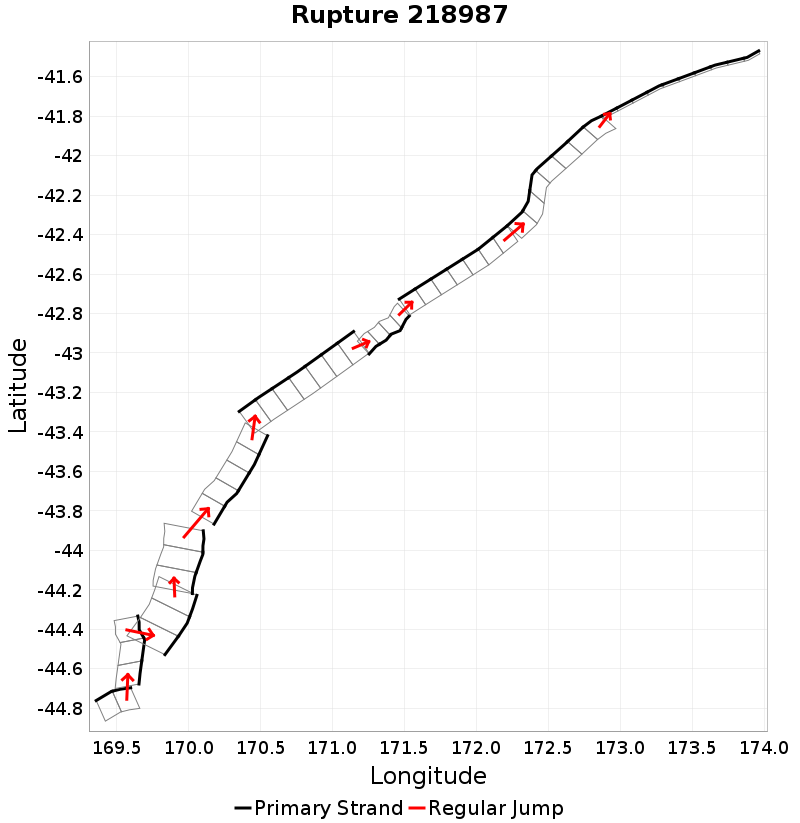

Rupture 218987
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 561.8 | 8.1 | 51 | 10 | 13,714.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.9 | 19.3 | 1.1 | 38.8 | -42.1 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 200 | 5 | 667.6 | 5.746616E-10 |
Text representation:
[165:691,692][114:513,512,511][430:1696,1697,1698][429:1693,1694,1695][288:1168,1167,1166,1165,1164][18:89,90,91,92,93,94,95][64:308,309,310,311][19:102,101,100,99,98,97,96][24:124,125,126,127,128,129,130][655:2531,2530,2529,2528,2527,2526,2525,2524,2523,2522]
Fault section list. First section listed is South West relative to the last section.
- Goodger
- 691, 692 (jump to 513, 3.8km)
- Dromedary
- 513, 512, 511 (jump to 1696, 4.7km)
- Ostler South
- 1696, 1697, 1698 (jump to 1693, 1.9km)
- Ostler North
- 1693, 1694, 1695 (jump to 1168, 6.9km)
- Liebig North
- 1168, 1167, 1166, 1165, 1164 (jump to 89, 0.2km)
- Alpine: Jacksons to Kaniere
- 89, 90, 91, 92, 93, 94, 95 (jump to 308, 0.3km)
- Browning Pass
- 308, 309, 310, 311 (jump to 102, 1.5km)
- Alpine: Kaniere to Springs Junction
- 102, 101, 100, 99, 98, 97, 96 (jump to 124, 0km)
- Alpine: Springs Junction to Tophouse
- 124, 125, 126, 127, 128, 129, 130 (jump to 2531, 0km)
- Wairau
- 2531, 2530, 2529, 2528, 2527, 2526, 2525, 2524, 2523, 2522
