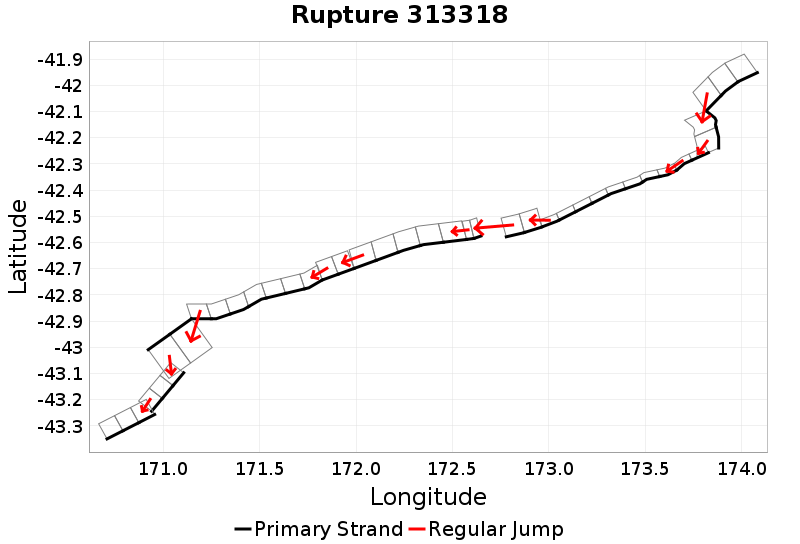

Rupture 313318
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 334.4 | 7.8 | 41 | 12 | 6,707.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 12.1 | 1.1 | 17.7 | -21.4 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 325 | 4 | 606.3 | 2.5050234E-8 |
Text representation:
[249:992,993,994][459:1808,1807][205:831,830][198:807,808,809,810,811,812,813,814][199:816,815][204:828,829][202:821,822,823,824,825][203:827,826][251:1013,1012,1011,1010,1009,1008,1007][18:95,94][326:1306,1307,1308][399:1580,1579,1578]
Fault section list. First section listed is North East relative to the last section.
- Kekerengu 1
- 992, 993, 994 (jump to 1808, 0km)
- Papatea
- 1808, 1807 (jump to 831, 0.2km)
- Hope: Seaward
- 831, 830 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810, 811, 812, 813, 814 (jump to 816, 0km)
- Hope: Hamner SE
- 816, 815 (jump to 828, 10.4km)
- Hope: Kakapo-2-Hamner
- 828, 829 (jump to 821, 0km)
- Hope: Hope River
- 821, 822, 823, 824, 825 (jump to 827, 0km)
- Hope: Hurunui
- 827, 826 (jump to 1013, 0km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94 (jump to 1306, 0.3km)
- Mathias
- 1306, 1307, 1308 (jump to 1580, 1.2km)
- Observation
- 1580, 1579, 1578
