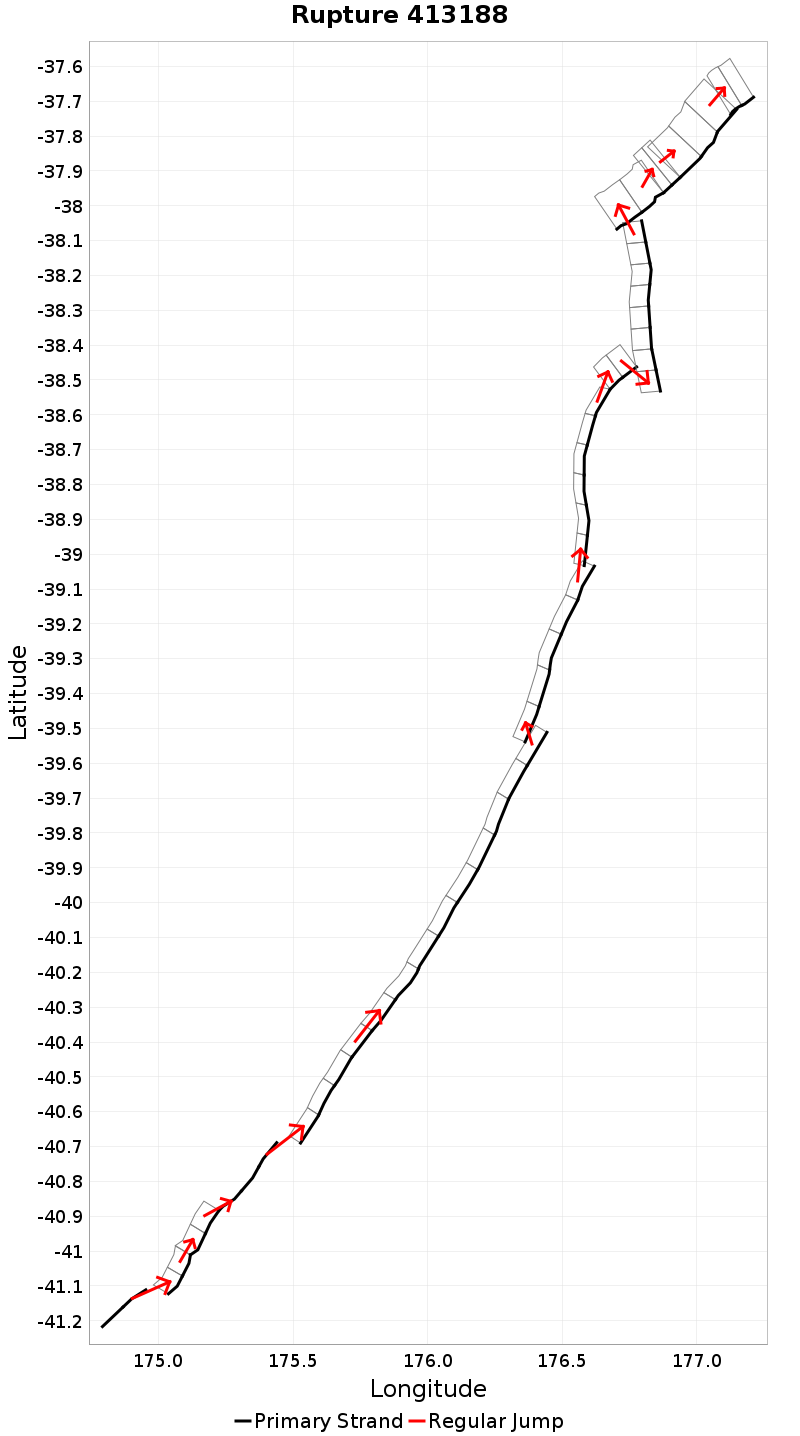

Rupture 413188
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 481.2 | 8 | 52 | 14 | 10,525.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 19.4 | 1.1 | 37.3 | 5.1 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 210 | 6 | 841.1 | 7.490425E-12 |
Text representation:
[344:1389,1388][3:7,8][433:1707,1708][434:1711,1710,1709][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][533:2080,2079,2078,2077,2076][695:2681,2680,2679,2678,2677,2676][694:2674,2675][642:2469,2468,2467,2466,2465,2464,2463,2462][128:556,557][129:559,558][700:2699,2700,2701][411:1616,1617]
Fault section list. First section listed is South West relative to the last section.
- Moonshine
- 1389, 1388 (jump to 7, 2.8km)
- Akatarawa
- 7, 8 (jump to 1707, 0km)
- Otaki Forks: 1
- 1707, 1708 (jump to 1711, 0km)
- Otaki Forks: 2
- 1711, 1710, 1709 (jump to 2601, 4.7km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 2080, 4.4km)
- Ruahine: North
- 2080, 2079, 2078, 2077, 2076 (jump to 2681, 2.7km)
- Wheao: South
- 2681, 2680, 2679, 2678, 2677, 2676 (jump to 2674, 0km)
- Wheao: North
- 2674, 2675 (jump to 2469, 2.4km)
- Waiohau: North
- 2469, 2468, 2467, 2466, 2465, 2464, 2463, 2462 (jump to 556, 2.2km)
- Edgecumbe 1987
- 556, 557 (jump to 559, 0km)
- Edgecumbe Coastal
- 559, 558 (jump to 2699, 0km)
- White Island 1
- 2699, 2700, 2701 (jump to 1616, 0.2km)
- Ohiwa 1
- 1616, 1617
