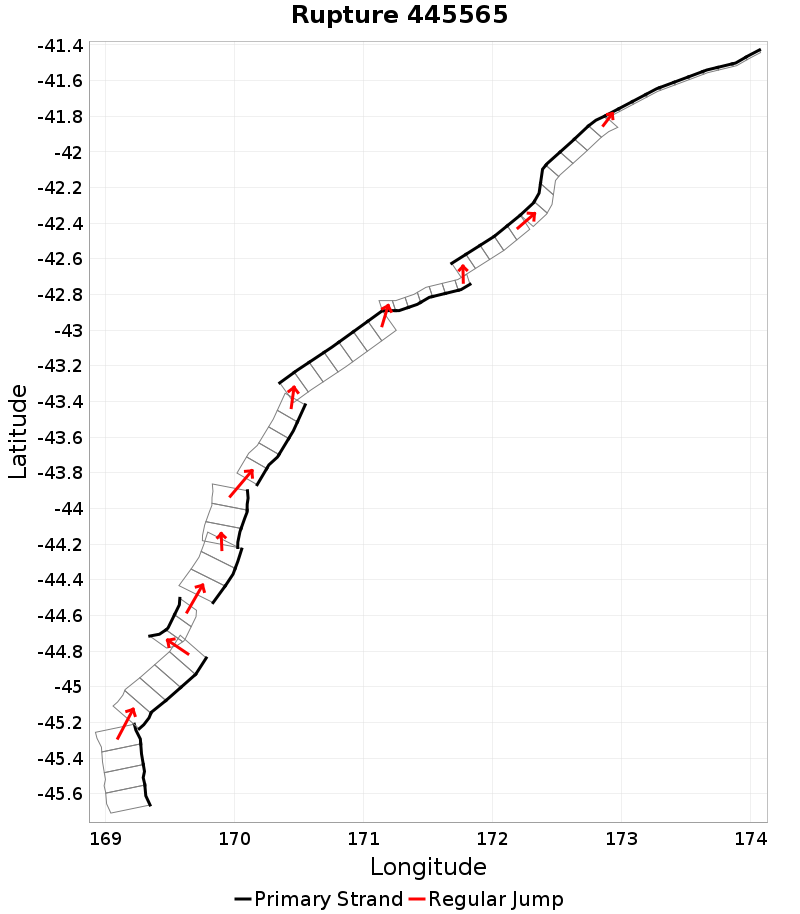

Rupture 445565
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 662.5 | 8.2 | 60 | 11 | 16,821.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8 | 19.6 | 1.1 | 57.3 | -51.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 240 | 7 | 916.1 | 9.6175255E-12 |
Text representation:
[415:1627,1628,1629,1630][121:532,533,534,535,536][290:1173,1174,1175][430:1696,1697,1698][429:1693,1694,1695][288:1168,1167,1166,1165,1164][18:89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][19:100,99,98,97,96][24:124,125,126,127,128,129,130][655:2531,2530,2529,2528,2527,2526,2525,2524,2523,2522,2521]
Fault section list. First section listed is South West relative to the last section.
- Old Man
- 1627, 1628, 1629, 1630 (jump to 532, 1.9km)
- Dunstan
- 532, 533, 534, 535, 536 (jump to 1173, 0.3km)
- Lindis River
- 1173, 1174, 1175 (jump to 1696, 8km)
- Ostler South
- 1696, 1697, 1698 (jump to 1693, 1.9km)
- Ostler North
- 1693, 1694, 1695 (jump to 1168, 6.9km)
- Liebig North
- 1168, 1167, 1166, 1165, 1164 (jump to 89, 0.2km)
- Alpine: Jacksons to Kaniere
- 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 100, 0.5km)
- Alpine: Kaniere to Springs Junction
- 100, 99, 98, 97, 96 (jump to 124, 0km)
- Alpine: Springs Junction to Tophouse
- 124, 125, 126, 127, 128, 129, 130 (jump to 2531, 0km)
- Wairau
- 2531, 2530, 2529, 2528, 2527, 2526, 2525, 2524, 2523, 2522, 2521
