Rupture 487692
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 149.4 | 7.4 | 15 | 5 | 3,314.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.1 | 4.8 | 1.3 | 30.9 | -87.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 180 | 2 | 688.9 | 4.677531E-4 |
Text representation:
[446:1751,1752,1753,1754,1755][426:1683,1684][613:2363,2364][615:2368,2369][474:1870,1869,1868,1867]

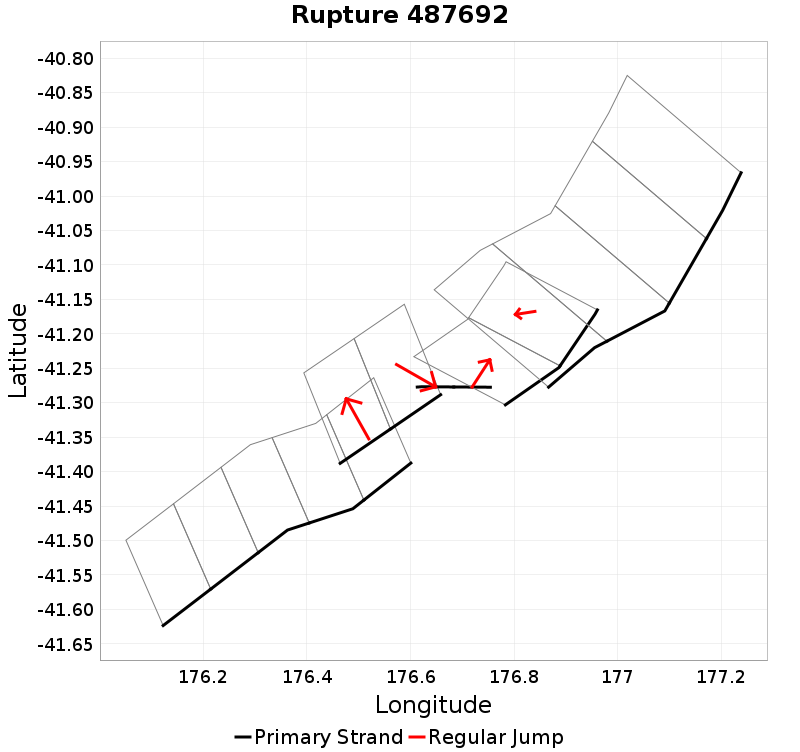

Fault section list. First section listed is South West relative to the last section.
- Pahaua
- 1751, 1752, 1753, 1754, 1755 (jump to 1683, 4.1km)
- Opouawe - Uruti
- 1683, 1684 (jump to 2363, 0.3km)
- Uruti Basin
- 2363, 2364 (jump to 2368, 0.2km)
- Uruti East - PorWest 1
- 2368, 2369 (jump to 1870, 0.1km)
- Porangahau Basin
- 1870, 1869, 1868, 1867
