Rupture 502659
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 153.6 | 7.5 | 15 | 5 | 3,419.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 14.7 | 18.7 | 1 | 1.2 | -94.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 40 | 2 | 308.4 | 8.055878E-5 |
Text representation:
[457:1799,1800,1801][307:1244,1243,1242][222:906,907][697:2686,2685,2684][268:1086,1085,1084,1083]

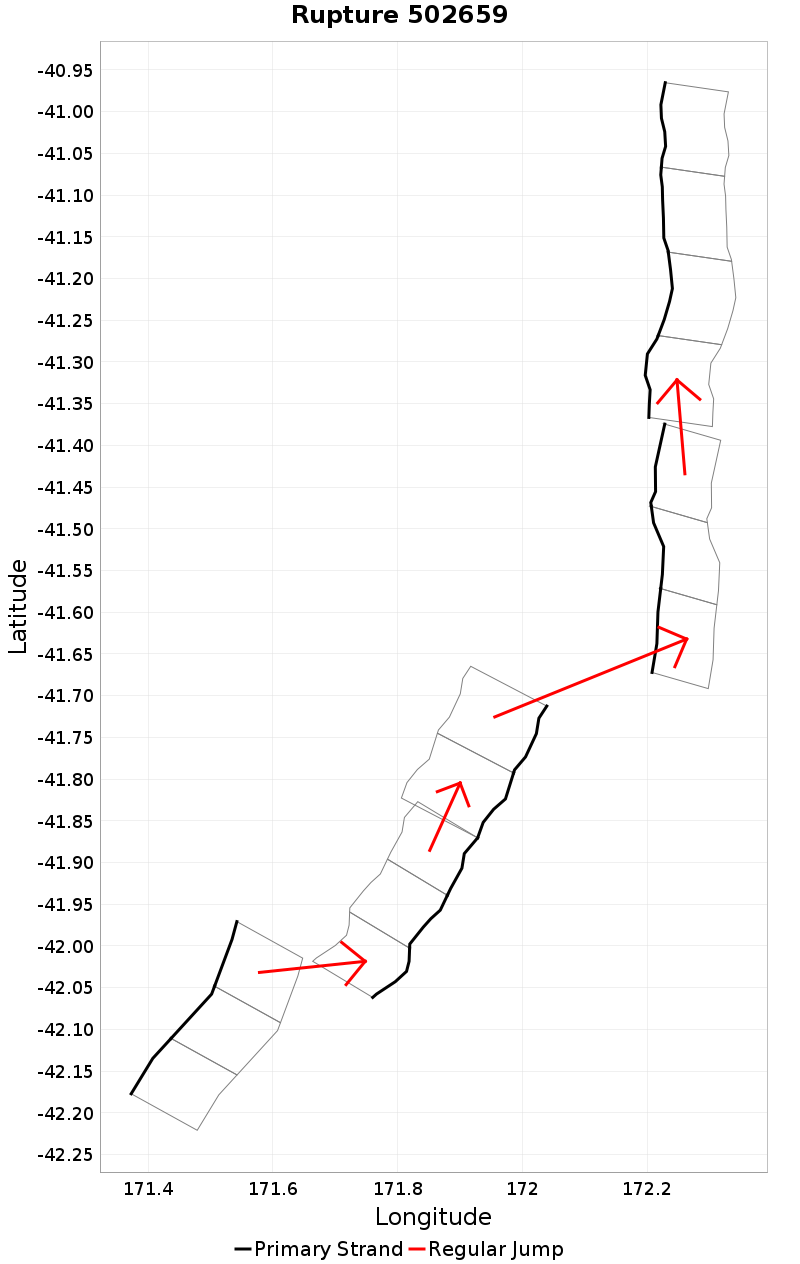

Fault section list. First section listed is South West relative to the last section.
- Paparoa West
- 1799, 1800, 1801 (jump to 1244, 1.8km)
- Maimai: North
- 1244, 1243, 1242 (jump to 906, 0km)
- Inangahua
- 906, 907 (jump to 2686, 14.7km)
- White Creek
- 2686, 2685, 2684 (jump to 1086, 2.2km)
- Kohaihai
- 1086, 1085, 1084, 1083
