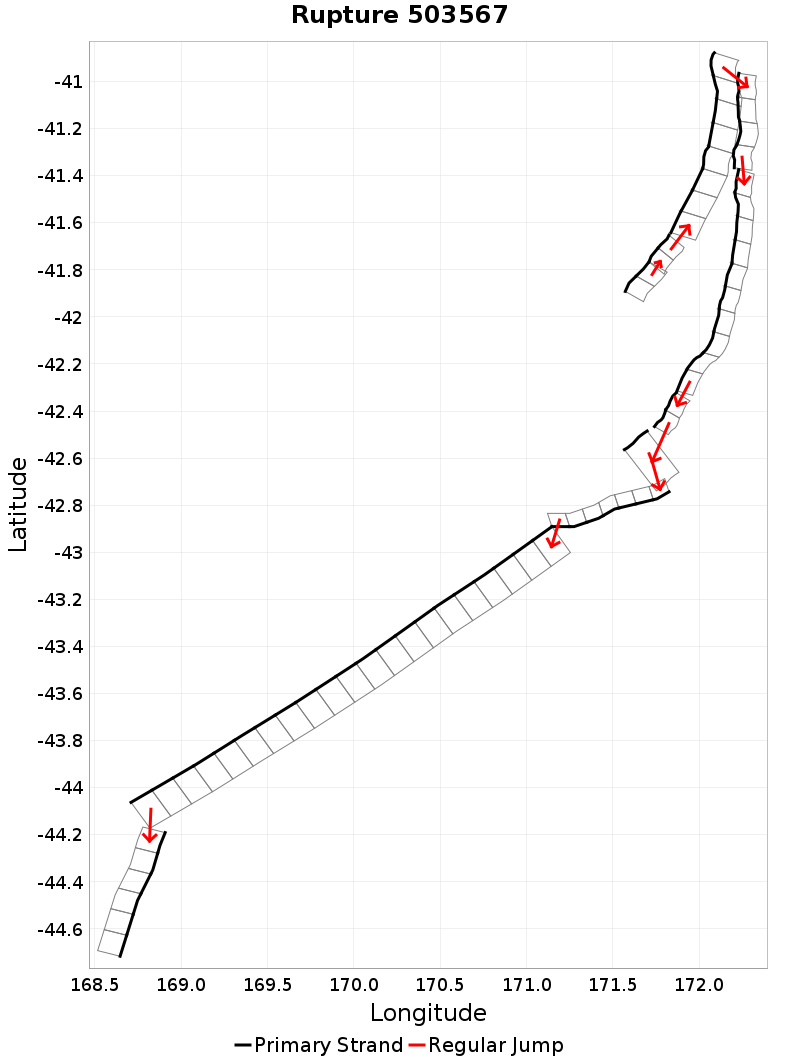

Rupture 503567
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 673.2 | 8.2 | 63 | 10 | 15,467.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.4 | 15.8 | 1.7 | 271 | -60.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 200 | 3 | 772.7 | 8.005452E-8 |
Text representation:
[457:1803,1804][458:1806,1805][270:1089,1090,1091,1092,1093,1094,1095,1096][268:1083,1084,1085,1086][697:2684,2685,2686,2687,2688,2689,2690,2691,2692,2693][698:2695,2694][192:778][251:1013,1012,1011,1010,1009,1008,1007][18:95,94,93,92,91,90,89,88,87,86,85,84,83,82,81,80,79,78,77,76,75][342:1371,1372,1373,1374,1375,1376]
Fault section list. First section listed is North East relative to the last section.
- Paparoa West
- 1803, 1804 (jump to 1806, 0km)
- Paparoa West: North
- 1806, 1805 (jump to 1089, 1.5km)
- Kongahau
- 1089, 1090, 1091, 1092, 1093, 1094, 1095, 1096 (jump to 1083, 5.4km)
- Kohaihai
- 1083, 1084, 1085, 1086 (jump to 2684, 2.2km)
- White Creek
- 2684, 2685, 2686, 2687, 2688, 2689, 2690, 2691, 2692, 2693 (jump to 2695, 1km)
- White Creek - buried
- 2695, 2694 (jump to 778, 4.1km)
- Hohonu North
- 778 (jump to 1013, 0.1km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94, 93, 92, 91, 90, 89, 88, 87, 86, 85, 84, 83, 82, 81, 80, 79, 78, 77, 76, 75 (jump to 1371, 1.5km)
- Moonlight North
- 1371, 1372, 1373, 1374, 1375, 1376
