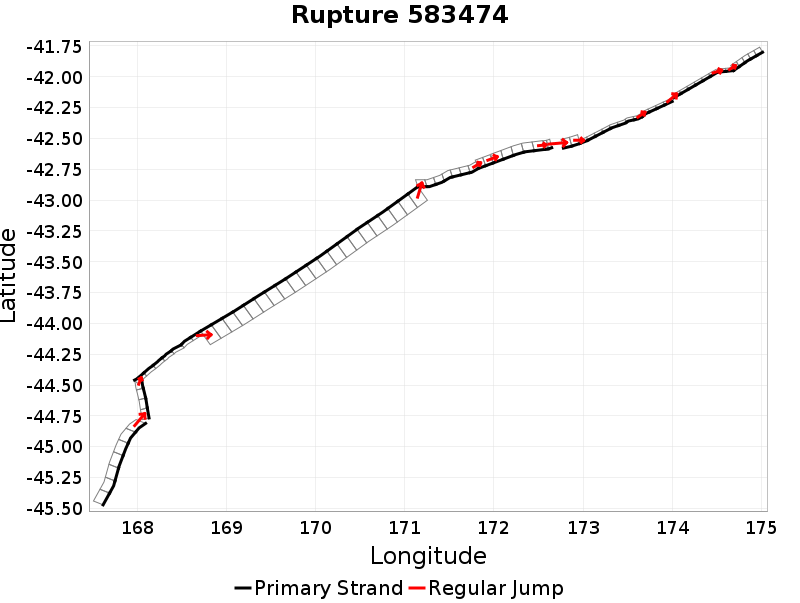

Rupture 583474
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 761.8 | 8.2 | 82 | 14 | 16,557.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 18.6 | 1.1 | 40.1 | -24.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 315 | 6 | 628.8 | 1.3110735E-10 |
Text representation:
[571:2233,2232,2231,2230,2229,2228,2227][108:494,493,492,491][17:68,69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][204:829,828][199:815,816][198:814,813,812,811,810,809,808,807][205:830,831,832,833][207:843,842,841,840,839,838][580:2254,2255][581:2256,2257,2258,2259,2260]
Fault section list. First section listed is South West relative to the last section.
- Te Anau
- 2233, 2232, 2231, 2230, 2229, 2228, 2227 (jump to 494, 4.4km)
- Darran
- 494, 493, 492, 491 (jump to 68, 0.3km)
- Alpine: George to Jacksons
- 68, 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 829, 0km)
- Hope: Kakapo-2-Hamner
- 829, 828 (jump to 815, 10.4km)
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808, 807 (jump to 830, 0km)
- Hope: Seaward
- 830, 831, 832, 833 (jump to 843, 3.5km)
- Hope: Te Rapa
- 843, 842, 841, 840, 839, 838 (jump to 2254, 0km)
- Te Rapa 1
- 2254, 2255 (jump to 2256, 0km)
- Te Rapa 2
- 2256, 2257, 2258, 2259, 2260
