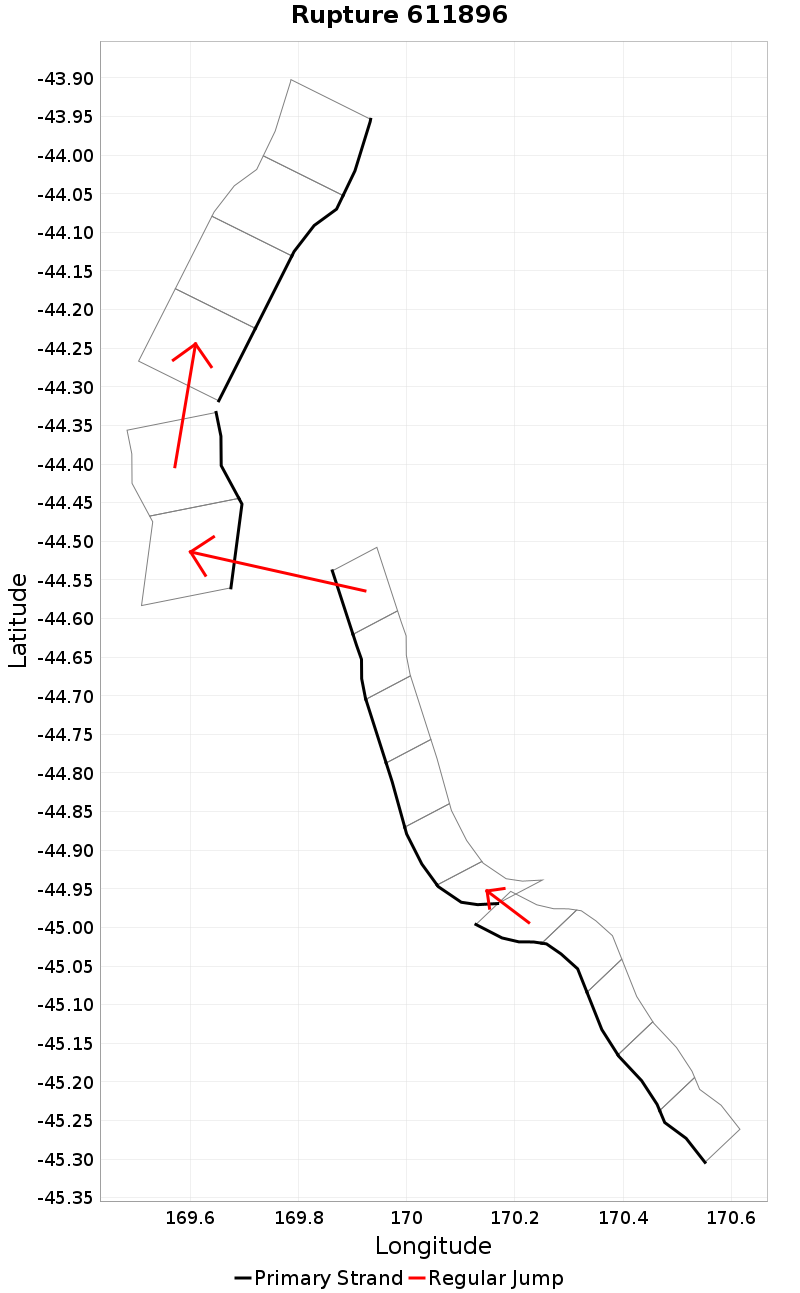

Rupture 611896
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 181.5 | 7.5 | 17 | 4 | 4,199.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 14.4 | 17.6 | 1.1 | 23.6 | -79.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 40 | 0.0 | 290.2 | 0.028840296 |
Text representation:
[628:2407,2406,2405,2404,2403][178:738,737,736,735,734,733][114:512,511][48:253,252,251,250]
Fault section list. First section listed is South East relative to the last section.
- Waihemo
- 2407, 2406, 2405, 2404, 2403 (jump to 738, 1.5km)
- Hawkdun
- 738, 737, 736, 735, 734, 733 (jump to 512, 14.4km)
- Dromedary
- 512, 511 (jump to 253, 1.7km)
- Barrier Range
- 253, 252, 251, 250
