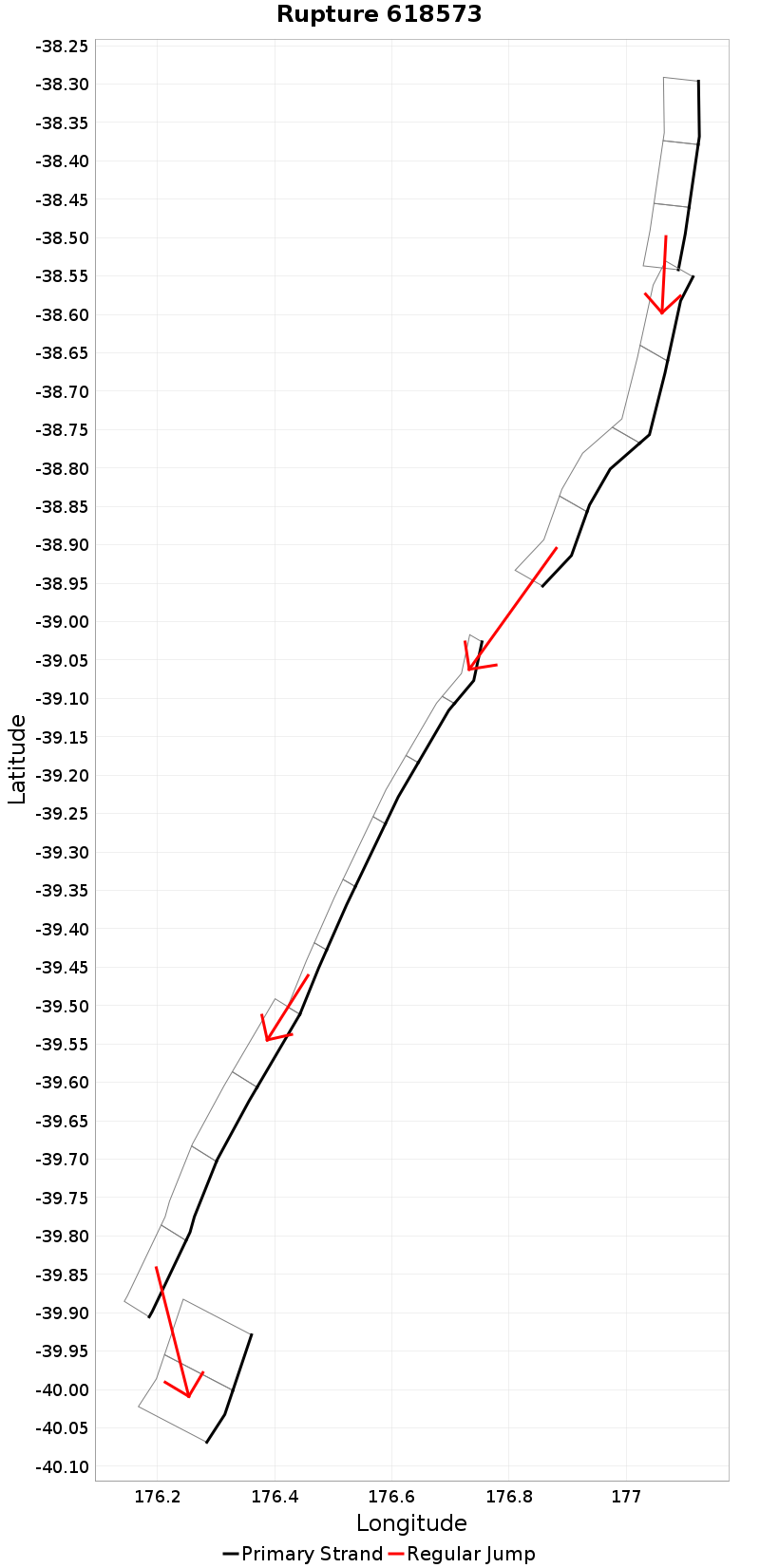

Rupture 618573
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 205.7 | 7.6 | 19 | 5 | 4,979.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 11.6 | 20.6 | 0.9799953 | -4.2 | -1.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 90 | 2 | 282.3 | 6.152596E-5 |
Text representation:
[635:2439,2440,2441][645:2483,2484,2485,2486][337:1350,1349,1348,1347,1346,1345][338:1359,1358,1357,1356][535:2087,2088]
Fault section list. First section listed is North East relative to the last section.
- Waimana: North
- 2439, 2440, 2441 (jump to 2483, 2.4km)
- Waiotahi: South
- 2483, 2484, 2485, 2486 (jump to 1350, 11.6km)
- Mohaka: North
- 1350, 1349, 1348, 1347, 1346, 1345 (jump to 1359, 0km)
- Mohaka: South
- 1359, 1358, 1357, 1356 (jump to 2087, 6.6km)
- Ruataniwha
- 2087, 2088
