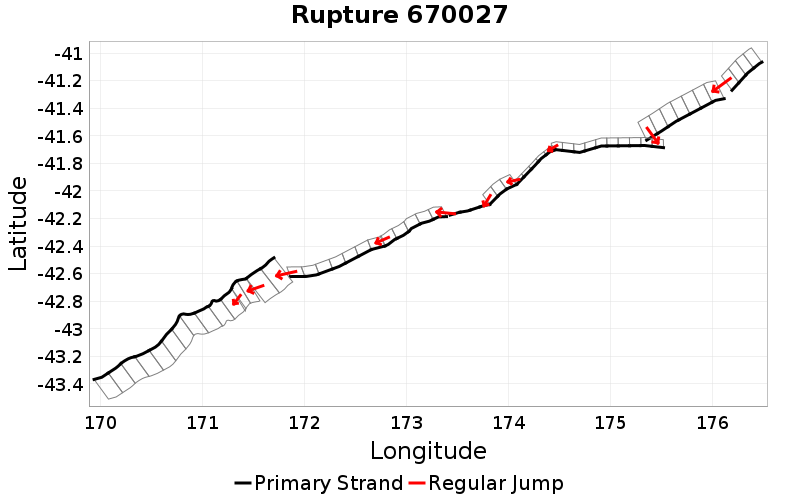

Rupture 670027
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 620.6 | 8.1 | 60 | 11 | 14,187.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 16.7 | 1 | 23.1 | -31.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 245 | 2 | 825.3 | 6.1046917E-6 |
Text representation:
[692:2664,2663,2662,2661][453:1780,1781,1782,1783,1784,1785,1786][61:289,290,291,292,293,294,295,296,297,298][367:1460,1461,1462,1463,1464][249:992,993,994][143:609,610,611,612][94:450,449,448,447,446][96:457,458,459,460,461,462,463][192:778,777][191:775,776][193:790,789,788,787,786,785,784,783,782,781,780]
Fault section list. First section listed is North East relative to the last section.
- Whareama Bank
- 2664, 2663, 2662, 2661 (jump to 1780, 6.4km)
- Palliser - Kaiwhata
- 1780, 1781, 1782, 1783, 1784, 1785, 1786 (jump to 289, 4.2km)
- BooBoo
- 289, 290, 291, 292, 293, 294, 295, 296, 297, 298 (jump to 1460, 0.2km)
- Needles
- 1460, 1461, 1462, 1463, 1464 (jump to 992, 0km)
- Kekerengu 1
- 992, 993, 994 (jump to 609, 0km)
- Fidget
- 609, 610, 611, 612 (jump to 450, 3.2km)
- Clarence: Central
- 450, 449, 448, 447, 446 (jump to 457, 0km)
- Clarence: Southwest
- 457, 458, 459, 460, 461, 462, 463 (jump to 778, 2.6km)
- Hohonu North
- 778, 777 (jump to 775, 0km)
- Hohonu
- 775, 776 (jump to 790, 0km)
- Hohonu South
- 790, 789, 788, 787, 786, 785, 784, 783, 782, 781, 780
