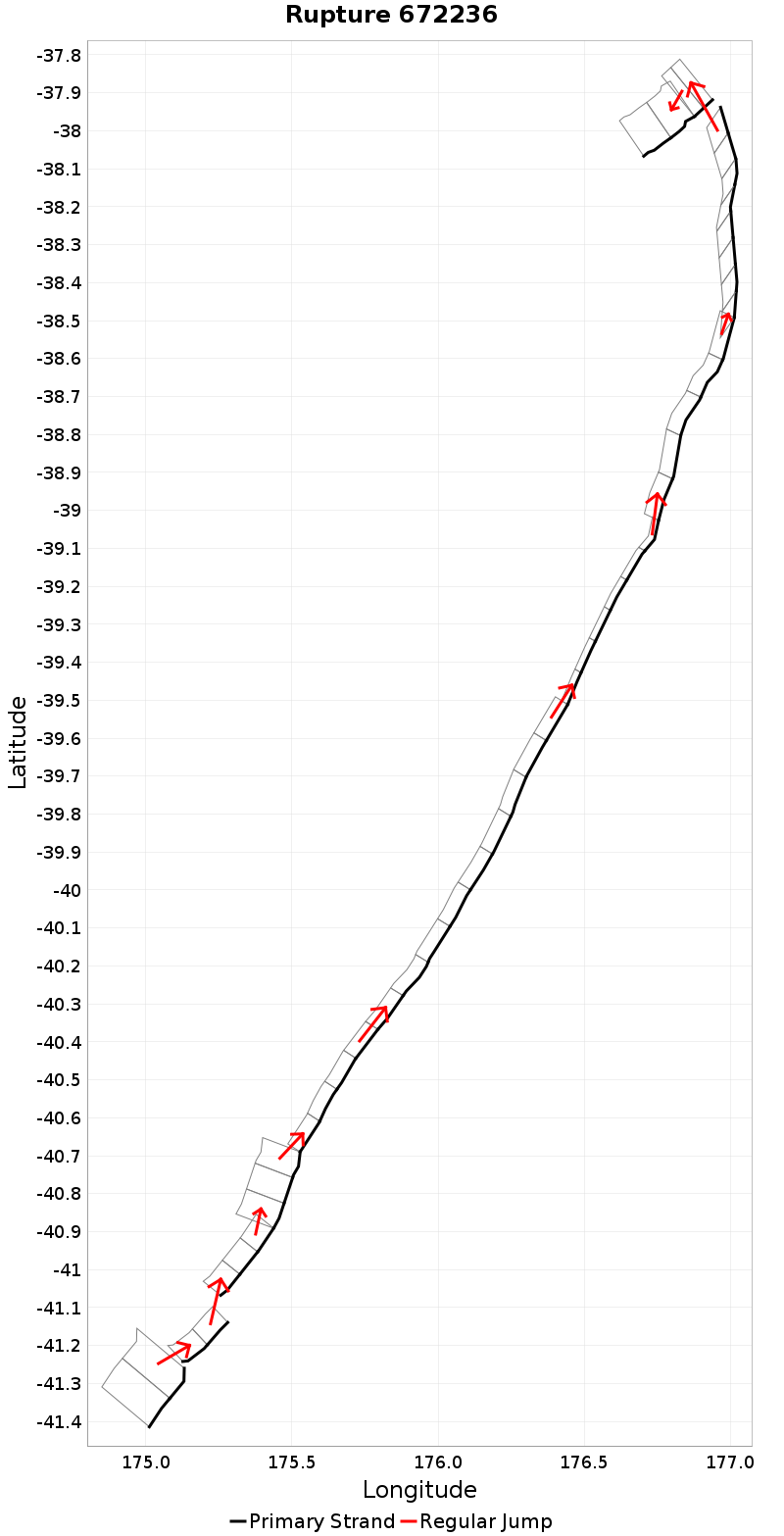

Rupture 672236
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 454.4 | 8 | 46 | 11 | 10,433.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 7.4 | 12 | 1.1 | 32.2 | -0.9989887 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 270 | 6 | 503.5 | 4.686267E-10 |
Text representation:
[693:2672,2673][651:2506,2507][680:2606,2605,2604][681:2609,2608,2607][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][688:2642,2643,2644,2645,2646][687:2641,2640,2639,2638,2637,2636,2635,2634][129:558,559][128:557,556]
Fault section list. First section listed is South West relative to the last section.
- Wharekauhau
- 2672, 2673 (jump to 2506, 1.3km)
- Wairarapa: 2
- 2506, 2507 (jump to 2606, 7.4km)
- Wellington: Tararua 2
- 2606, 2605, 2604 (jump to 2609, 0km)
- Wellington: Tararua 3
- 2609, 2608, 2607 (jump to 2601, 0km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2642, 0km)
- Whakatane: South
- 2642, 2643, 2644, 2645, 2646 (jump to 2641, 0km)
- Whakatane: North
- 2641, 2640, 2639, 2638, 2637, 2636, 2635, 2634 (jump to 558, 3.3km)
- Edgecumbe Coastal
- 558, 559 (jump to 557, 0km)
- Edgecumbe 1987
- 557, 556
